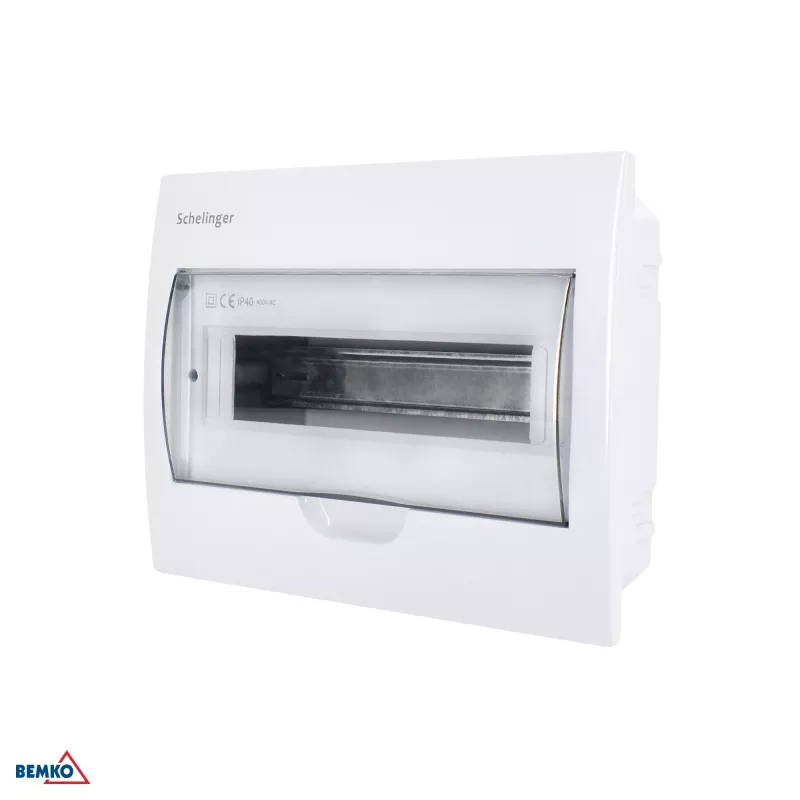

SCHELINGER A80-RDP-IP40-NPE-12P uppoasennettava jakokeskus IP40 12N+12PE liittimet 1x12P

The SCHELINGER A80-RDP-IP40-NPE-12P is a high-quality flush-mounted distribution board designed for reliable electrical distribution in residential and commercial installations. With IP40 protection, it offers dust protection and safety against solid objects larger than 1 mm. The board comes pre-equipped with 12 N and 12 PE terminals, simplifying installation and ensuring secure connections.

Advantages

This distribution board features a robust ABS plastic construction, a reversible opaque white door, and a grey base. It complies with EN 62208 standards and has passed the 650°C glow wire test, ensuring fire safety. The IK07 impact resistance rating guarantees durability against mechanical shocks. Pre-punched knockouts allow for easy cable entry, and the 70 mm installation depth fits standard wall cavities.

Suitable for

• Residential electrical distribution
• Commercial buildings
• Industrial control panels
• Renovation and new construction projects

Key specifications

• Mounting Type: Flush-mounted
• Number of Rows: 1
• Modules per Row: 12
• Total Module Capacity: 12
• IP Protection Rating: IP40
• Material: High-quality ABS Plastic
• Door Type: Opaque (White)
• N Terminals Included: Yes (12)
• PE Terminals Included: Yes (12)
• Color: White (door/frame), Grey (base)
• Standards Compliance: EN 62208
• Glow Wire Test: 650°C
• Impact Resistance: IK07
• Rated Insulation Voltage: 400V AC
• Max. Terminal Cross-Section (N/PE): 16 mm²
• Cable Entry: Pre-punched knockouts
• Installation Depth (Recess): 70 mm
• Reversible Door: Yes

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Use appropriate cable glands for cable entry. This board is ideal for use with standard modular DIN rail components.
