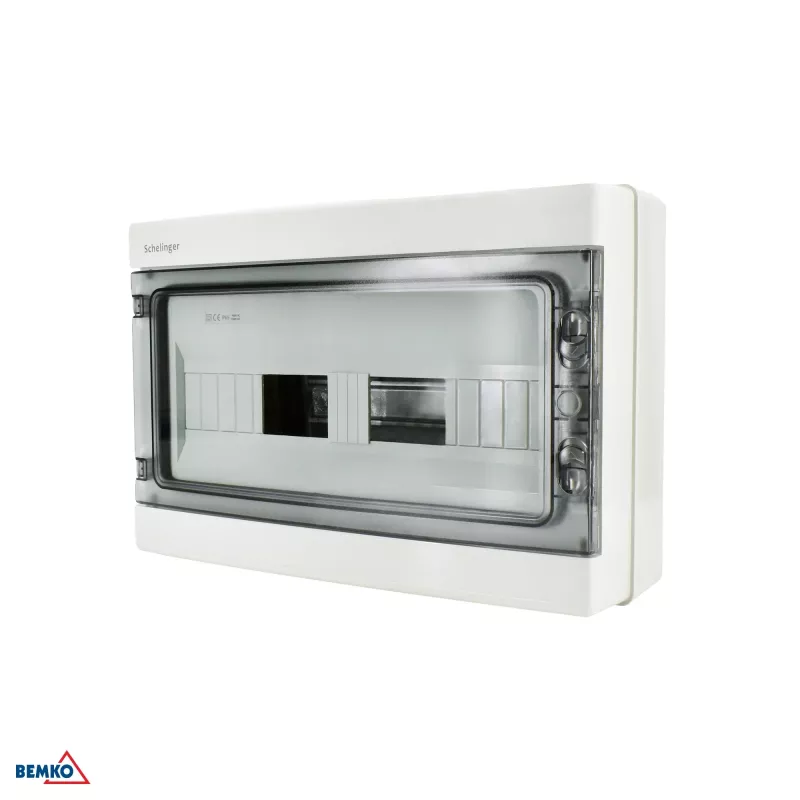

SCHELINGER A80-RHN-IP65-NPE-18P pinta-asennettava jakokeskus IP65 18N+18PE 1x18P harmaa

The SCHELINGER A80-RHN-IP65-NPE-18P is a high-quality surface-mounted distribution board designed for reliable electrical distribution in demanding environments. With an IP65 rating, it offers complete protection against dust and water jets, making it suitable for both indoor and outdoor applications. This enclosure features 18 neutral (N) and 18 protective earth (PE) terminals, providing ample connectivity for various electrical installations.

Advantages

Robust construction with high-quality ABS plastic and a transparent polycarbonate door ensures durability and easy inspection. The IP65 rating guarantees protection against harsh weather conditions, while the IK08 impact resistance adds mechanical strength. Pre-marked knockouts simplify cable entry, and the hinged door allows convenient access.

Suitable for

• Industrial electrical distribution
• Outdoor power supply systems
• Commercial building installations
• Renewable energy systems

Key specifications

• Mounting Type: Surface-mounted
• IP Rating: IP65
• Number of Modules: 18
• Number of Rows: 1
• Material: High-quality ABS Plastic
• Door Type: Transparent, Hinged
• Door Material: Polycarbonate (PC)
• Terminals Included: Yes (N+PE)
• Number of Neutral (N) Terminals: 18
• Number of Protective Earth (PE) Terminals: 18
• Rated Voltage: 400V AC
• Rated Current: 63A
• Impact Resistance: IK08
• Glow Wire Test: 650°C
• Operating Temperature Range: -25°C to +60°C
• Color: Grey (RAL 7035)
• Standards Compliance: PN-EN 62208, PN-EN 61439-3
• Application Environment: Indoor and Outdoor
• Cable Entry: Pre-marked knockouts

Recommendations

For optimal performance, ensure proper sealing of unused knockouts and follow local electrical codes during installation. This distribution board is ideal for applications requiring high ingress protection and robust terminal capacity.
