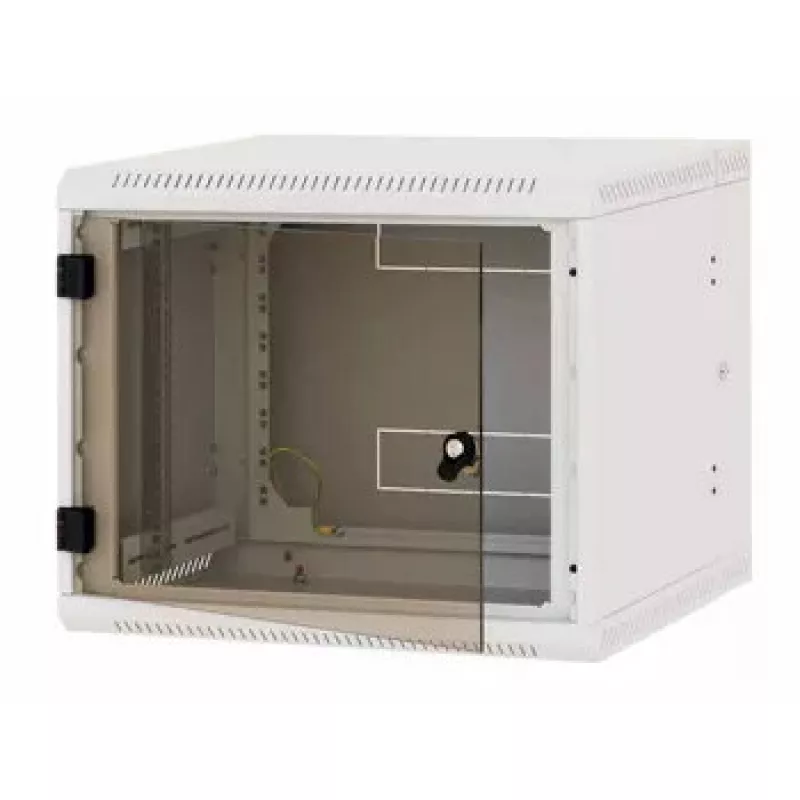

Seinäasennusräkki Triton RBA-09-AD6-CAX-A1 9U valkoinen

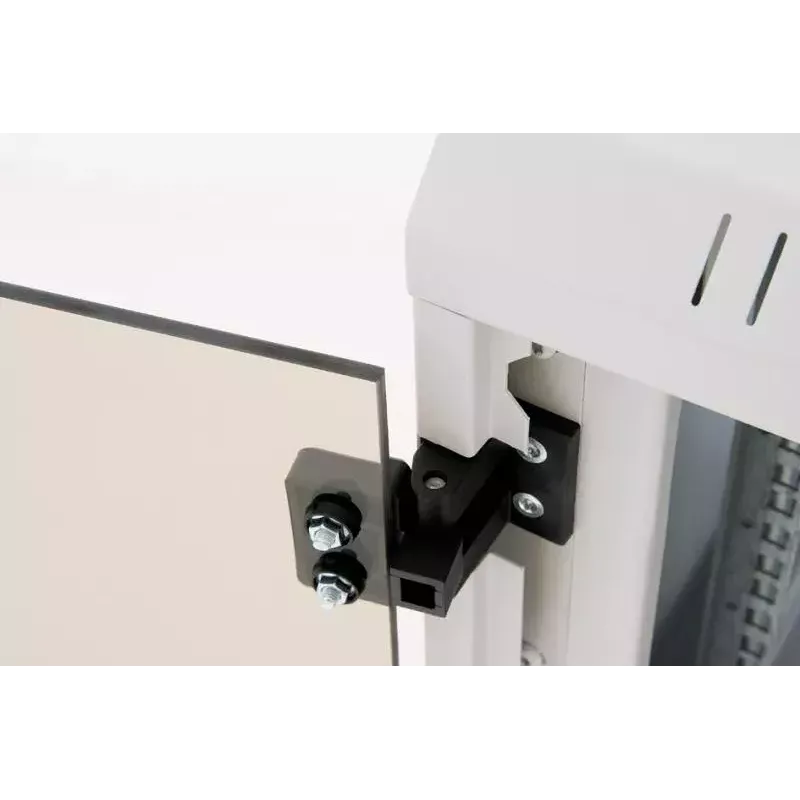

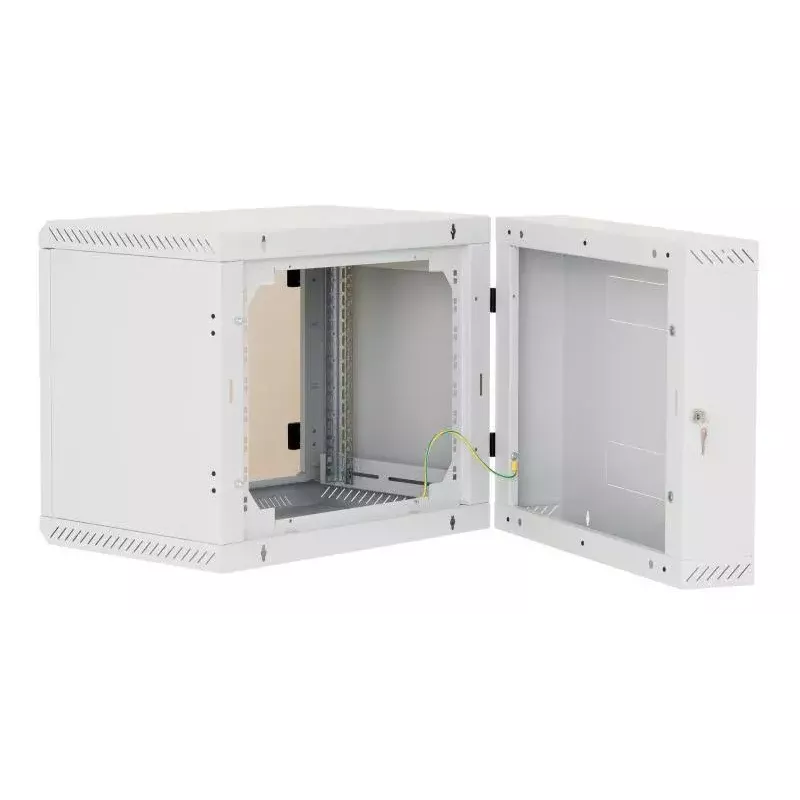

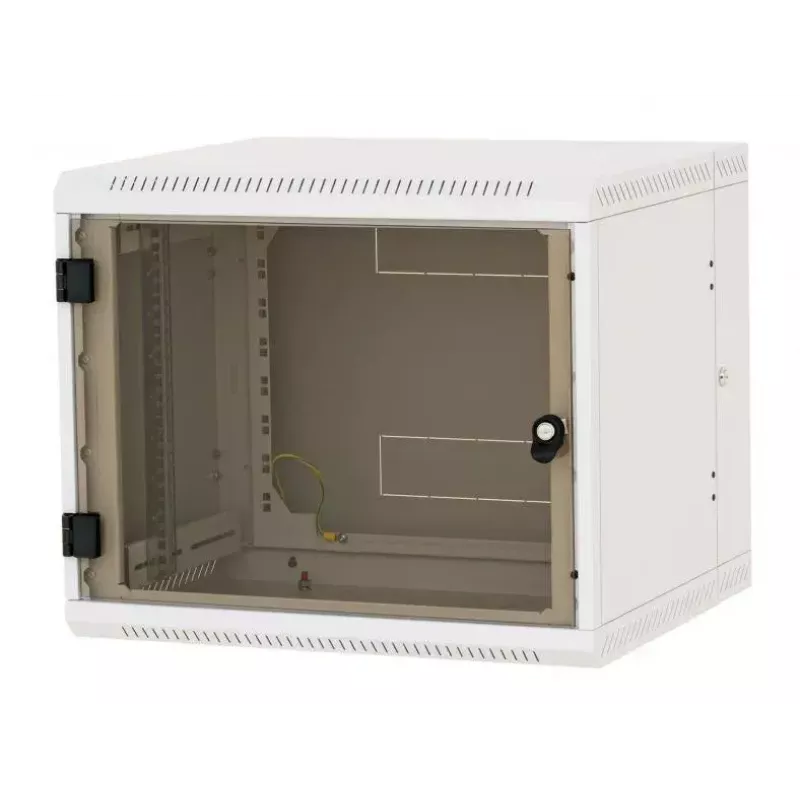

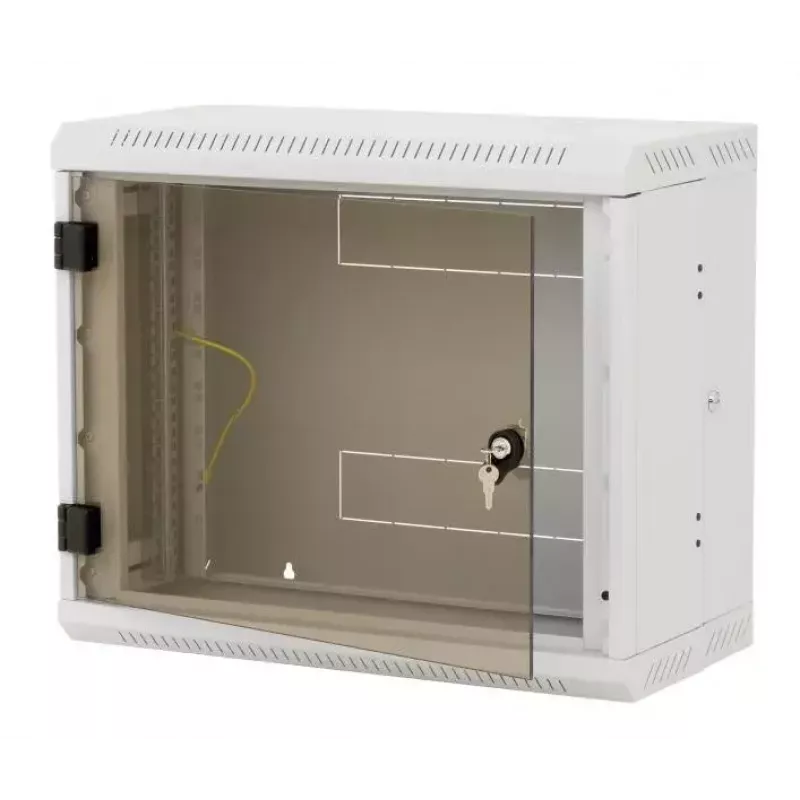

Two-part welded wall-mounted enclosure IP20, load capacity 20 – 30 kg. High stability of construction The distributor has a robust welded construction. The high quality of workmanship and the latest technologies ensure the great appearance of the enclosures. Doors The doors of the enclosures are made of solid glass as standard, but can also be made of solid sheet metal or perforated on request. Flexible door opening The hinge system allows the door to be opened 165°. The doors can be easily removed. All-glass The all-glass doors are made of 4 mm thick shock-resistant tempered glass. If broken, they shatter into many small splinters, like car glass. For safety reasons, we recommend closing the all-glass door after installing components to avoid collisions with other objects. Our all-glass doors have been tested by a certified testing laboratory and meet the requirements of CSN EN 12150-1+A: Glass in building – thermally toughened soda lime silicate safety glass. The tested glass meets the standard for disintegration after glass breakage, certificate of conformity CQ-24-2023, test report IKATES 58A-2024. Door lock Quick and easy access to the enclosure. In the standard version, the locks of the door and the swing part are keyed alike. Adjustable vertical rails The 482.6 mm (19") vertical rails are freely adjustable in the depth of the cabinet. This simplifies the installation of components and cable management. Knock-out panels The roof, base and rear panel of the enclosure are equipped with cable entries with knock-out panels. These can be sealed with the brush strip to keep out dust. Cable edge protection is used to protect the cables from damage (both are included in the accessory pack). Ventilation The types RBA-xx-AD5-A6 and RBA-xx-AD6-A6 have six knockouts for mounting the RAx-CH-X2x-X1 ventilation units (or the RAX-CH-X07-X9 fans – NOT intended for the German market! – up to three in the roof and three in the floor of the enclosure). This means that components that previously could not be cooled in wall-mounted enclosures and had to be installed in floor-mounted enclosures can now also be installed in RBA enclosures. Two-part 19’ wall-mounted enclosure with IP20 protection. The enclosure is mounted directly on the wall. The distributor includes two adjustable vertical grid rails. Distributor design: compact welded construction, solid glass door with 4 mm thick safety glass, optionally with solid sheet or perforated door. The permissible load capacity of the individual doors is max. 10 kg. The minimum thickness of the application is 65 µm. The enclosures are designed for the installation of data and telecommunication systems and their distribution systems. All removable parts are connected to earthing cables, which must be properly attached and plugged in throughout the entire service life of the cabinet. There is an M8 bolt in the base of the cabinet as a central earthing point. Cable entry knockouts are located at the top and bottom of the rear panel of the enclosure, with an additional one in the roof and floor of the enclosure. The A6 version has knockouts in the roof and floor of the enclosure for the use of fans.

• Depth: 615mm
• Manufacturer No.: RBA-09-AD6-CAX-A1
• EAN Barcode: 8595105029367
• Detachable side panels: Yes
• Detachable rear panel: Yes
• Colour: Grey (RAL7035)
• Demountable: No
• Height (outside): 500mm
• Height packaging: 0.500m
• Packaging volume: 0.1845m³
• Length packaging: 0.615m
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  [email protected]
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Ventilation holes: No
• Weight: 23.290kg
• Width packaging: 0.600m
• Brand: Tritón
• Customs tariff number: 8538100090
• Recommended maximum load: 30kg
• Width: 600mm
• Door width: 516mm
• Protection class: IP20
• Height unit: 9U
• Door height: 395mm

How to use

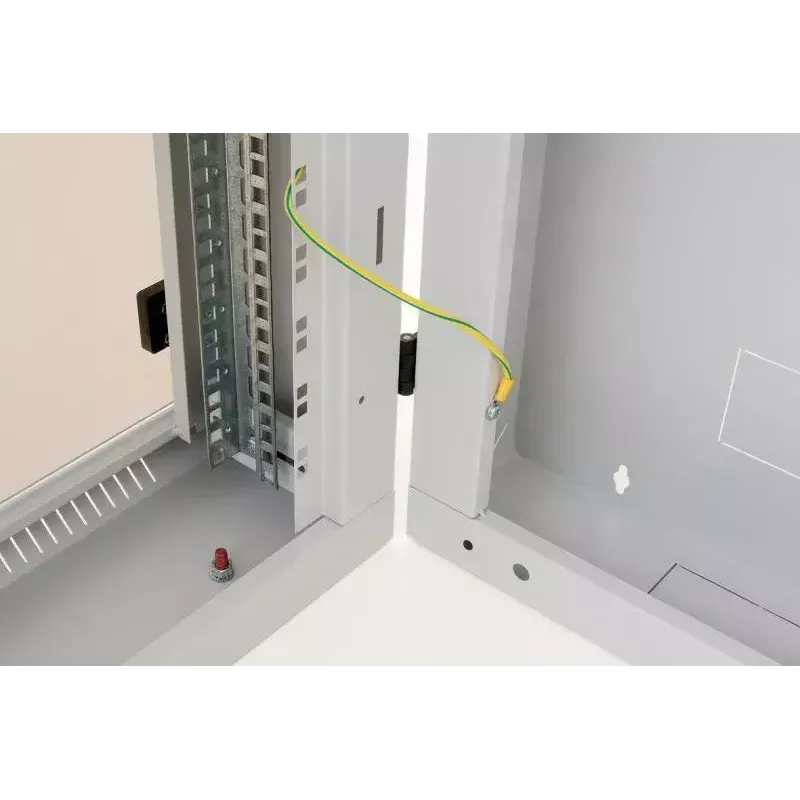

Mount the cabinet securely on a suitable load-bearing wall following the manufacturer’s installation instructions and local building codes. Adjust the pair of 19" vertical rails to the required depth for the installed equipment, then mount devices using standard rack screws. Use the breakout-type blanking panels and supplied plastic frame with brush to route and seal cables at the top, bottom or rear openings. Unlock the chain shackles and remove the front part if full rear access is needed. Ensure all parts are interconnected and earthed before powering equipment.

Recommendations

Inspect mounting points and wall strength to ensure the 23.9 kg cabinet and installed equipment are safely supported. Choose the appropriate front door option (glazed, steel or perforated) based on ventilation and security needs, and route cables through the provided brush-sealed openings to minimise dust entry.
