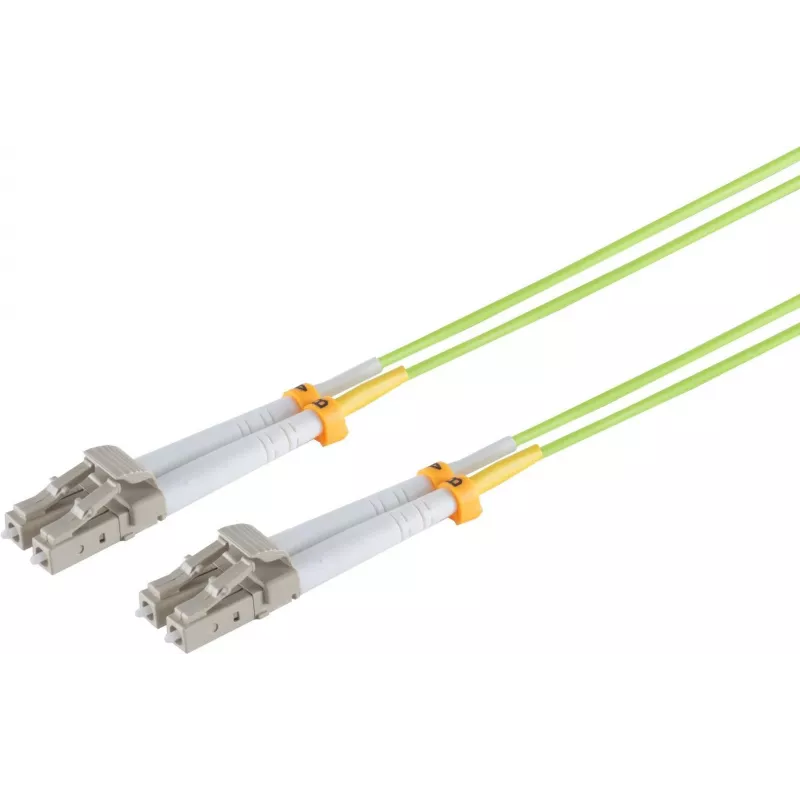

SHIVERPEAKS S/CONN maximum connectivity OM5 LC/LC Duplex kuitu-patchkaapeli, 50/125µm, limetinvihreä, 15m 07-500815

For high-speed multimode fiber links where bandwidth and signal integrity are non-negotiable, this SHIVERPEAKS S/CONN maximum connectivity OM5 duplex patch cable delivers laser-optimized performance across short-wave division multiplexing (SWDM) wavelengths. The lime green LSZH jacket sets it apart from standard aqua OM3/OM4 cables, providing instant identification for OM5 infrastructure while supporting 40G and 100G Ethernet over longer reaches. Pre-terminated with LC duplex connectors on both ends, it eliminates field polishing and reduces installation time in data centers, enterprise backbones, and high-density patching environments.

Highlights

• OM5 multimode fiber with 50/125 µm core/cladding for extended reach at 850–953 nm
• LC duplex to LC duplex connectors with low insertion loss (< 0.3 dB typical)
• Lime green LSZH jacket: halogen-free, low smoke, and flame retardant for safety
• Effective modal bandwidth of 4700 MHz·km at 850 nm and 2470 MHz·km at 953 nm
• Supports SWDM applications, 40G/100G Ethernet, and high-density fiber patching

In daily use

Patch panels, switches, and servers connect quickly with the push-pull LC duplex connectors, and the 15-meter length reaches across racks or between adjacent cabinets without excess slack. The LSZH jacket emits minimal smoke and toxic gases in the event of fire, making it suitable for enclosed spaces and public buildings. Attenuation stays low—2.3 dB/km at both 850 nm and 953 nm—so link budgets remain healthy even in crowded fiber trays. The lime green color avoids confusion with legacy OM3/OM4 cabling and simplifies auditing of OM5 links.

Full specifications

• Brand: SHIVERPEAKS
• Model: 07-500815
• MPN: 07-500815
• EAN: 4017538093332
• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber category: OM5
• Core/cladding diameter: 50/125 µm
• Connector A: LC duplex
• Connector B: LC duplex
• Cable length: 15.0 m
• Jacket color: Lime green
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Number of fibers: 2 (duplex)
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Attenuation at 850 nm: 2.3 dB/km
• Attenuation at 953 nm: 2.3 dB/km
• Attenuation at 1300 nm: 0.6 dB/km
• Effective modal bandwidth (EMB) at 850 nm: 4700 MHz·km
• Effective modal bandwidth (EMB) at 953 nm: 2470 MHz·km
• Application: High-speed data networks, SWDM, data centers
• Standards compliance: IEC 60793-2-10 Type A1a.4, TIA-492AAAE
• Operating temperature: -20°C to +70°C

Final note

Choose this OM5 patch cable when you need a future-ready, safety-conscious link that handles today's 40/100G demands and tomorrow's SWDM expansion—all in a distinctive lime green jacket.
