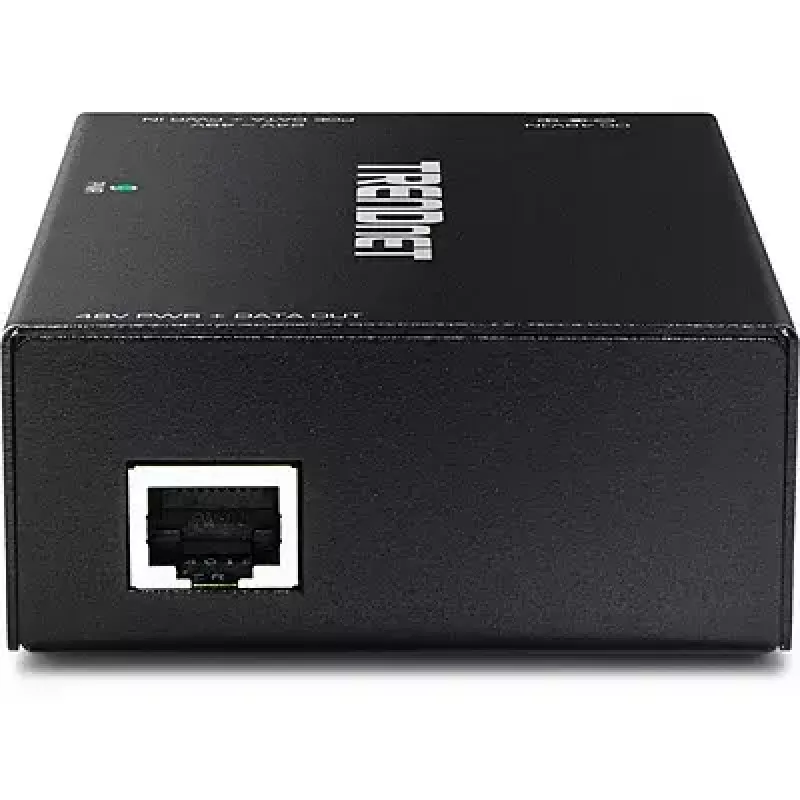

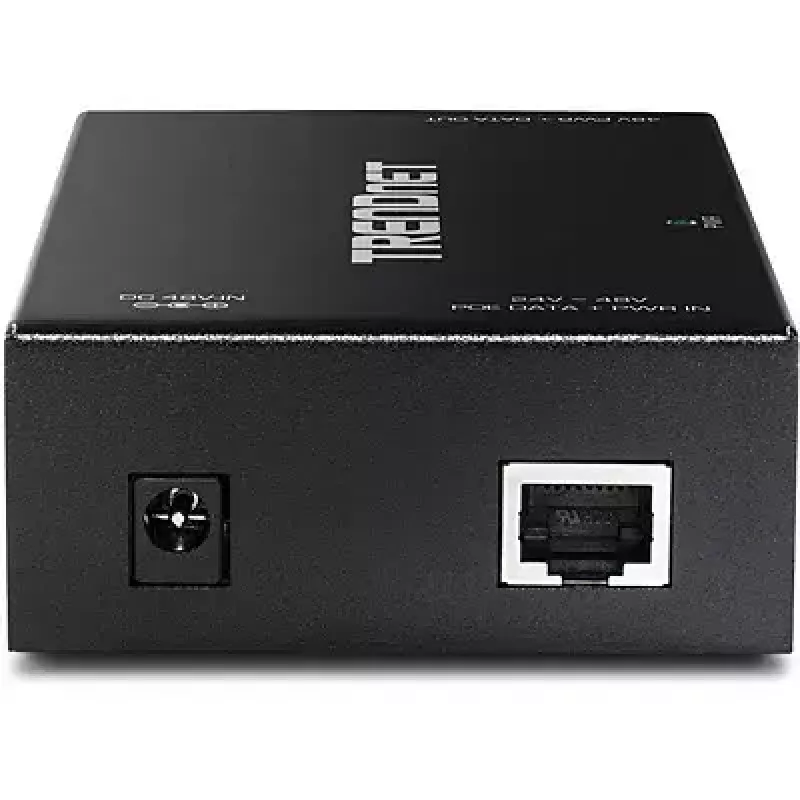

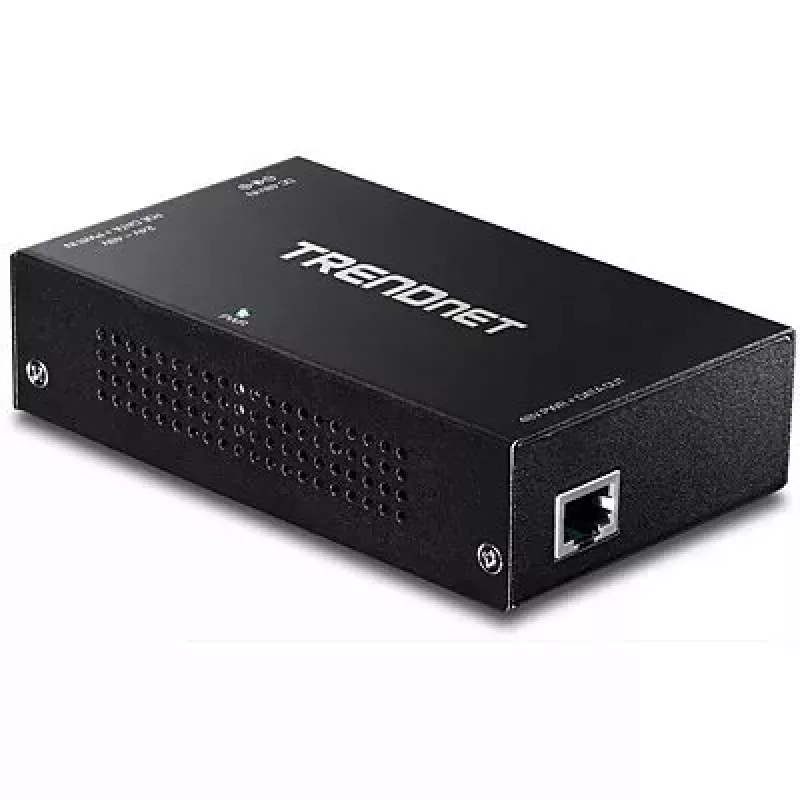

Silta/toistin Trendnet TPE-E110

The TRENDnet Gigabit PoE+ Repeater/Amplifier TPE-E110 extends and amplifies a Gigabit PoE or PoE+ network connection to remote locations. The unit auto-detects PoE (15.4 W) or PoE+ (30 W) input and adds an additional 100 m of range, allowing a total cable distance of up to 200 m (656 ft.) from the original PoE device. The repeater is housed in a metal enclosure and does not require an external power adapter, which simplifies installation in remote sites.

Advantages

The TPE-E110 supports Gigabit speeds (10/100/1000 Mbps) over standard 10/100/1000BASE-TX cabling and provides a simple way to extend both data and PoE power without additional power sources. It consumes only 2 W and is CE and FCC certified. Multiple units can be daisy-chained to further increase reach while maintaining PoE/PoE+ delivery.

Suitable for

• Extending PoE/PoE+ to remote IP cameras and network devices up to 200 m from the original PoE injector/switch
• Connecting remote access points or VoIP phones where additional cable length is required
• Deployments that need rugged, wall- or pole-mounted repeaters without external power supplies

Key specifications

• Model: TPE-E110
• Maximum data transfer rate: 1000 Mbit/s (Gigabit)
• Supported speeds: 10/100/1000 Mbps
• Interface: 1 × Ethernet LAN (RJ-45)
• PoE compatibility: auto-detects PoE (15.4 W) and PoE+ (30 W); extends 100 m per unit (up to 200 m from PoE source; daisy-chain up to 7 units)
• Power consumption: 2 W
• Weight: 0.306 kg
• Certifications: CE, FCC

How to use

Connect the upstream PoE or PoE+ cable from your injector or switch into the TPE-E110’s RJ-45 port. The device will automatically detect the PoE standard and amplify the signal, adding another 100 m of Ethernet/PoE reach. If additional distance is required, connect further TPE-E110 units in sequence (daisy-chain) following the same wiring method. No external power adapter is needed; mount the unit in a suitable indoor or protected outdoor location using the metal enclosure.

Recommendations

To maintain optimal PoE+ performance, verify the power budget of the original PoE switch or injector when daisy-chaining multiple repeaters. For best results use quality Cat5e or better cabling and observe standard installation practices to minimise signal loss.
