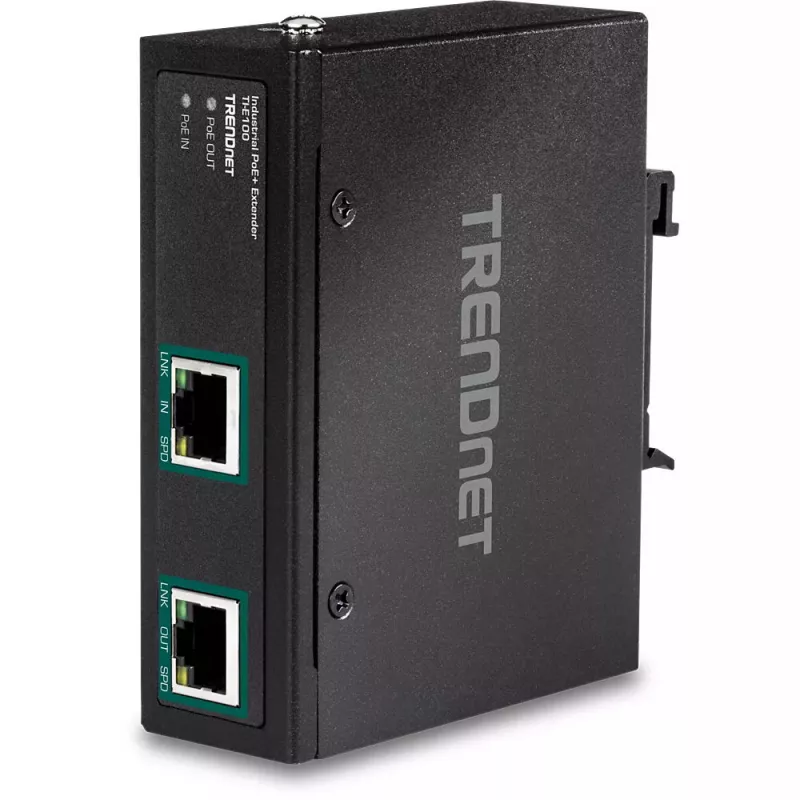

Verkkolähetin Trendnet TI-E100

The TRENDnet TI-E100 Industrial Gigabit PoE+ Extender extends a single PoE or PoE+ connection an additional 100 m (328 ft.), allowing remote installation of PoE/PoE+ devices. The extender auto-detects PoE or PoE+ and provides the appropriate wattage, features one gigabit PoE+ input and one gigabit PoE+ output, and can be daisy-chained with up to two units for longer runs. Built with an IP30-rated enclosure and a wide operating temperature range, the TI-E100 is designed for reliable operation in industrial environments.

Advantages

The TI-E100 requires no external power since it is PoE powered, reducing installation time and cost. It supports auto-sensing for PoE (15.4 W) and PoE+ (30 W) devices and provides gigabit data rates for high-speed connections. Its compact metal housing and wall-mountable design enable flexible placement, while IP30 protection and an operating temperature range from -40 °C to 75 °C ensure durability in harsh conditions.

Suitable for

• Extending PoE/PoE+ connections to remote IP cameras
• Connecting wireless access points in distant locations
• Extending PoE-powered network devices in industrial or outdoor-adjacent environments

Key specifications

• Model: TI-E100
• PoE/PoE+ extension distance: +100 m (328 ft.) per extender; up to 200 m (656 ft.) from PoE source with one extender, up to 300 m (984 ft.) when daisy-chaining two
• Ports: 1 × Gigabit PoE+ input, 1 × Gigabit PoE+ output
• Supported data rates: 10/100/1000 Mbps
• Maximum transfer distance (per segment): 100 m
• Operating temperature: -40 °C to 75 °C (-40 °F to 167 °F)
• Enclosure rating: IP30
• Power: PoE powered (no external power required)
• Dimensions: 158 × 80 × 32 mm
• Weight: 0.158 kg
• Certifications: CE, FCC

How to use

Connect a PoE or PoE+ cable from your PoE power source equipment (switch or injector) to the TI-E100 gigabit PoE+ input port. Place the extender near the location where you need to continue the run and connect the output port to the remote PoE/PoE+ device. If additional distance is required, connect a second TI-E100 to the output port of the first unit to daisy-chain and extend the network further. Check LED indicators to verify link and power status.

Recommendations

Install the TI-E100 in a dry, ventilated location and use shielded Cat5e or better cabling for optimal gigabit performance. Verify that the upstream PoE source can supply sufficient power for the connected device, especially when daisy-chaining extenders.
