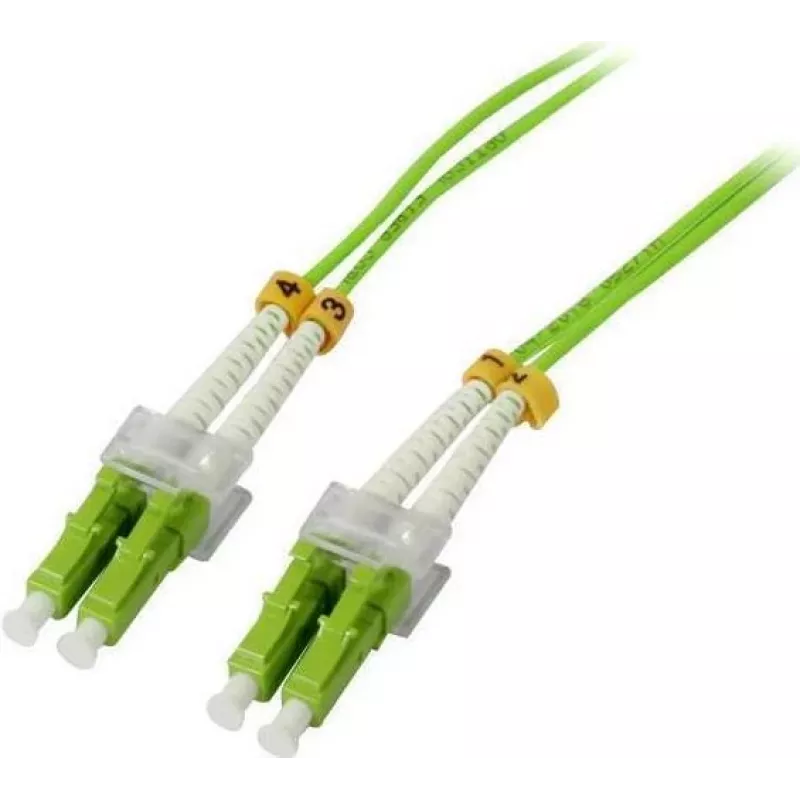

Synergy21 S215500 kuitupatchkaapeli 7,5m LC-LC OM5 50/125µm LSZH vihreä

The Synergy21 S215500 is a high-performance fibre optic patch cable designed for demanding data centre and enterprise network environments. With a length of 7.5 metres and LC duplex connectors on both ends, this OM5 multimode cable supports high-speed data transmission up to 400 Gigabit Ethernet. The 50/125µm core/cladding diameter and LSZH jacket ensure reliable performance and safety.

Advantages

OM5 wideband multimode fibre provides enhanced bandwidth for shortwave wavelength division multiplexing (SWDM) applications, allowing multiple wavelengths over a single fibre. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for confined spaces. The lime green colour ensures easy identification in high-density patching areas.

Suitable for

• Data centres and server rooms
• Storage area networks (SANs)
• Local area networks (LANs)
• Enterprise network infrastructure
• High-speed backbone connections

Key specifications

• Cable type: Fibre optic patch cable
• Fiber type: Multimode (MM) OM5
• Core/Cladding: 50/125 µm
• Connectors: LC duplex to LC duplex
• Length: 7.5 m
• Outer diameter: 2 mm (per individual fibre)
• Number of fibres: 2 (duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Lime green
• Maximum data rate: 400 Gbps
• Wavelengths: 850 nm, 953 nm, 1300 nm
• Connector polish: UPC
• Standards: TIA/EIA-568.3-D, ISO/IEC 11801, IEC 60794-2-10

Recommendations

For optimal performance, pair this cable with OM5-compatible transceivers and ensure proper handling to avoid bending beyond the minimum bend radius. Suitable for use in structured cabling systems requiring high bandwidth and future-proofing.
