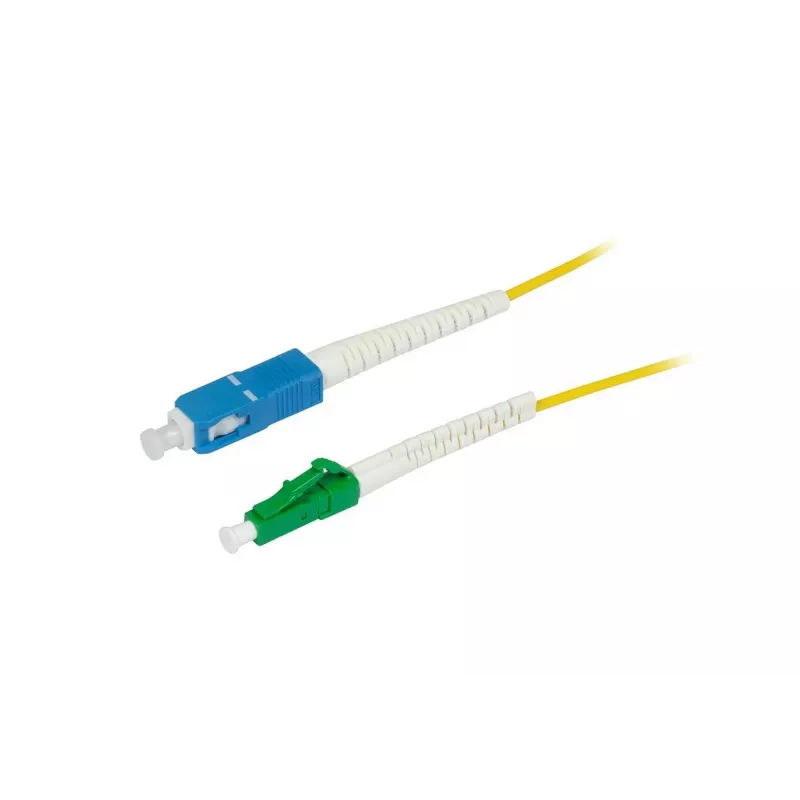

SYNERGY21 S215631V2 OS2 single-mode 1-kuituinen patchkaapeli, LC/APC - SC, 5 m, 9/125 µm, G.657.A2, 2 mm, keltainen

Single-mode fiber optic patch cable with LC/APC to SC connectors, delivering reliable low-loss connections in data centers and FTTH networks. The 5-meter cable features a bend-insensitive G.657.A2 fiber and a flexible bend protection sleeve for robust performance in tight spaces.

Advantages

OS2 single-mode fiber supports long-distance transmission at 1310 nm and 1550 nm. The LC/APC connector ensures high return loss (≥60 dB), reducing signal reflections. The 2 mm outer diameter and flexible bend protection sleeve allow easy routing in high-density environments.

Suitable for

• Data center interconnects
• Telecommunications backbone links
• FTTH (Fiber to the Home) installations
• LAN and enterprise networks

Key specifications

• Fiber type: Single-mode OS2
• Core/cladding diameter: 9/125 µm
• ITU-T standard: G.657.A2 (bend-insensitive)
• Connectors: LC/APC to SC
• Length: 5 m
• Cable outer diameter: 2 mm
• Jacket color: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB (APC)

Recommendations

Ideal for high-density fiber patching where bend radius is limited. Pair with OS2-compatible hardware for optimal performance.
