Telegärtner BNC puristusliitin 50 ohm RG-142B/U, Professional, 5 kpl:n pakkaus J01000A0008

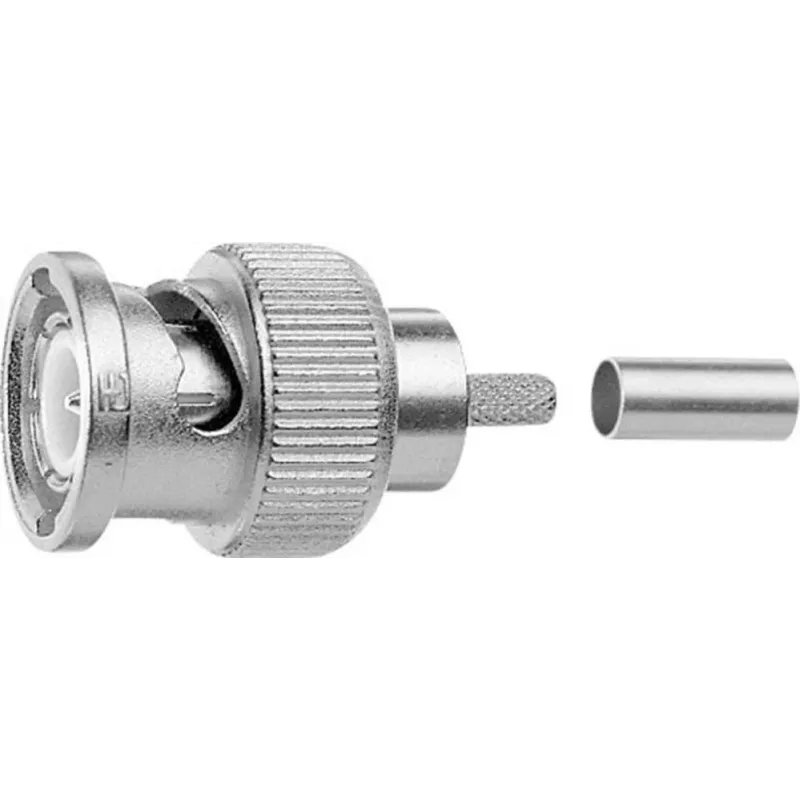

BNC cable plug for professional RF applications, terminated by crimping onto RG-142B/U coaxial cable. The connector features a 50 Ohm impedance and a robust nickel-plated brass body with gold-plated beryllium copper center contact, ensuring reliable signal integrity up to 4 GHz.

Advantages

Precision crimp/crimp termination provides a secure mechanical and electrical connection without soldering. The PTFE insulation and professional-grade materials deliver consistent performance in demanding environments, from test and measurement to video transmission.

Suitable for

• RF and video signal connections
• Test and measurement setups
• Professional installations requiring MIL-STD-348 compliant BNC interface

Key specifications

• Connector type: BNC male plug
• Impedance: 50 Ohm
• Termination: Crimp (inner and outer conductor)
• Compatible cable: RG-142B/U
• Dielectric diameter: 2.95 mm
• Inner conductor diameter: 1.0 mm
• Body material: Nickel-plated brass
• Contact material: Gold-plated beryllium copper
• Insulation: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V peak
• Operating temperature: -40°C to +85°C
• Pack size: 5 pieces

Recommendations

For best results, use a calibrated crimp tool designed for BNC connectors and follow the manufacturer's stripping dimensions for RG-142B/U cable.
