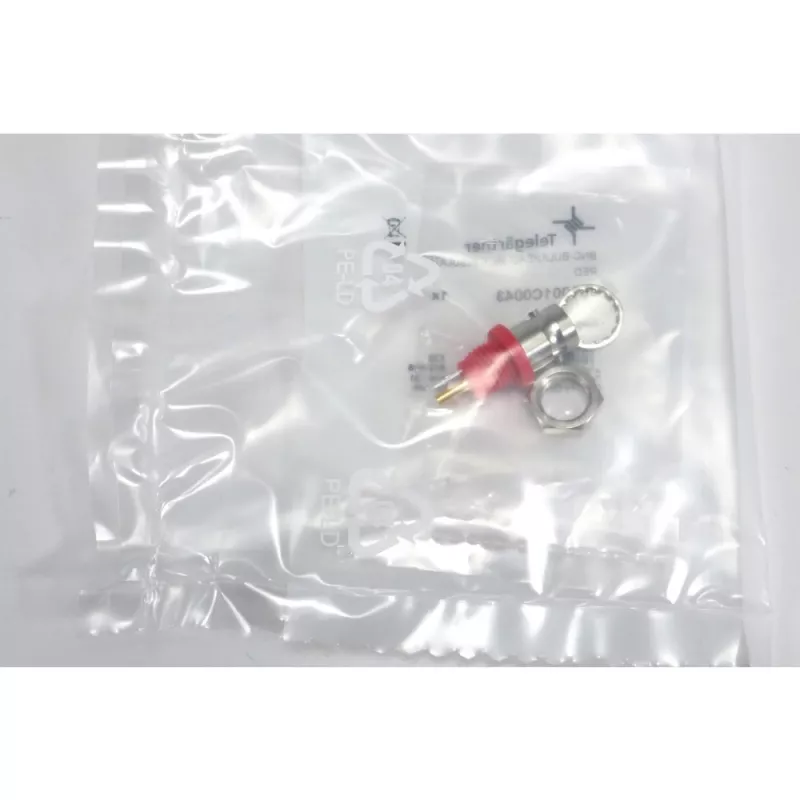

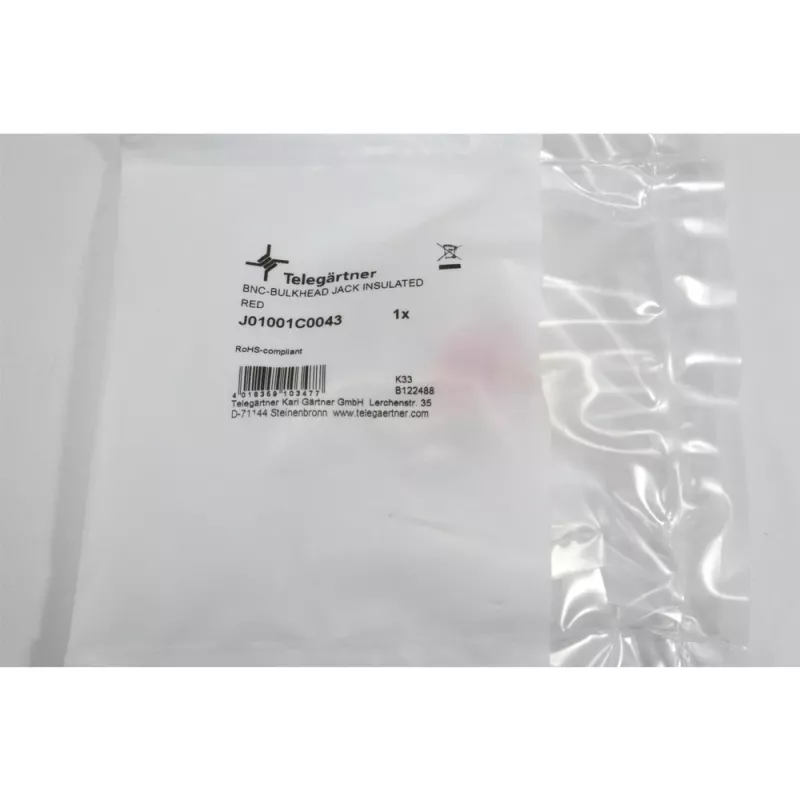

Telegärtner BNC-upotusliitäntä, eristetty 50 ohm, punainen eristyslaippa, Z01 - 1 kpl (J01001C0043)

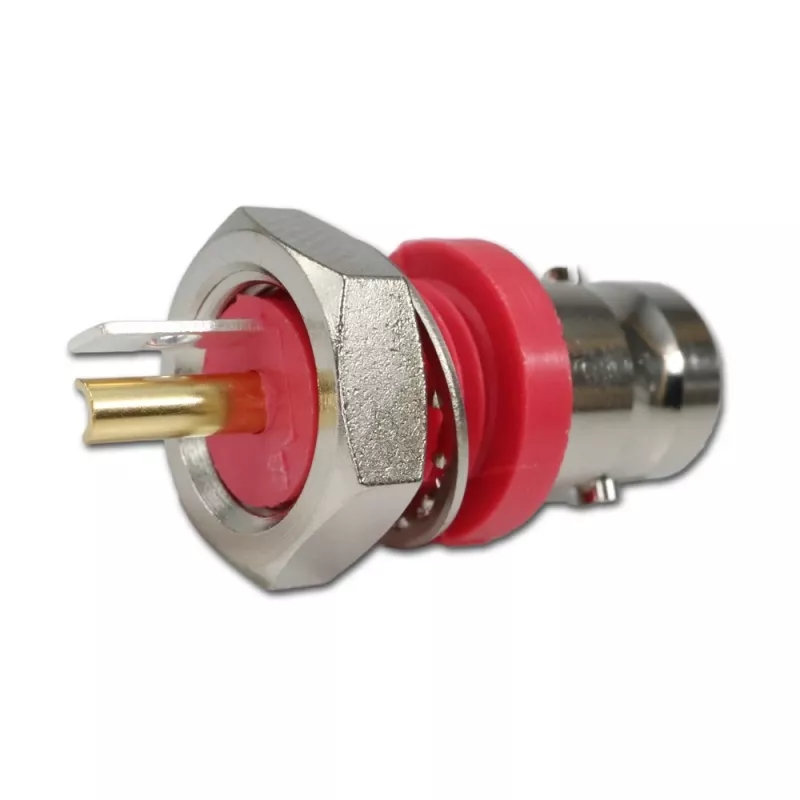

This Telegärtner BNC bulkhead jack stands out with its isolated panel-mount design and red insulating flange, providing clear visual identification and electrical isolation from the mounting panel. The 50 Ohm impedance and gold-plated center contact ensure reliable signal integrity for professional RF applications.

Highlights

• BNC female connector with 50 Ohm impedance
• Isolated bulkhead mount with red insulating flange
• Gold-plated center contact and nickel-plated body
• PTFE dielectric for stable performance up to 4 GHz
• Wide operating temperature range: -55 °C to +155 °C

In daily use

This connector is ideal for panel-mounted RF connections where isolation from the chassis is required. The red flange provides quick visual identification and helps prevent grounding issues. The robust construction supports at least 500 mating cycles, making it suitable for test equipment, broadcast, and industrial RF systems.

Full specifications

• Connector type: BNC jack (female)
• Impedance: 50 Ohm
• Mounting type: bulkhead / panel mount, isolated
• Flange colour: red
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.2 at 1 GHz
• Contact plating: gold (0.5 µm Au over Ni)
• Body plating: nickel
• Dielectric material: PTFE
• Insulator material (flange): PA (polyamide)
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥ 500
• Dielectric withstanding voltage: 1.5 kVeff (50 Hz)
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1.0 mΩ
• Mounting hole diameter: 12.7 mm (with anti-rotation flat)
• Flange dimensions: 17.5 x 17.5 mm

Final note

A reliable isolated BNC bulkhead connector for professional RF installations, with clear red identification and high-quality materials.
