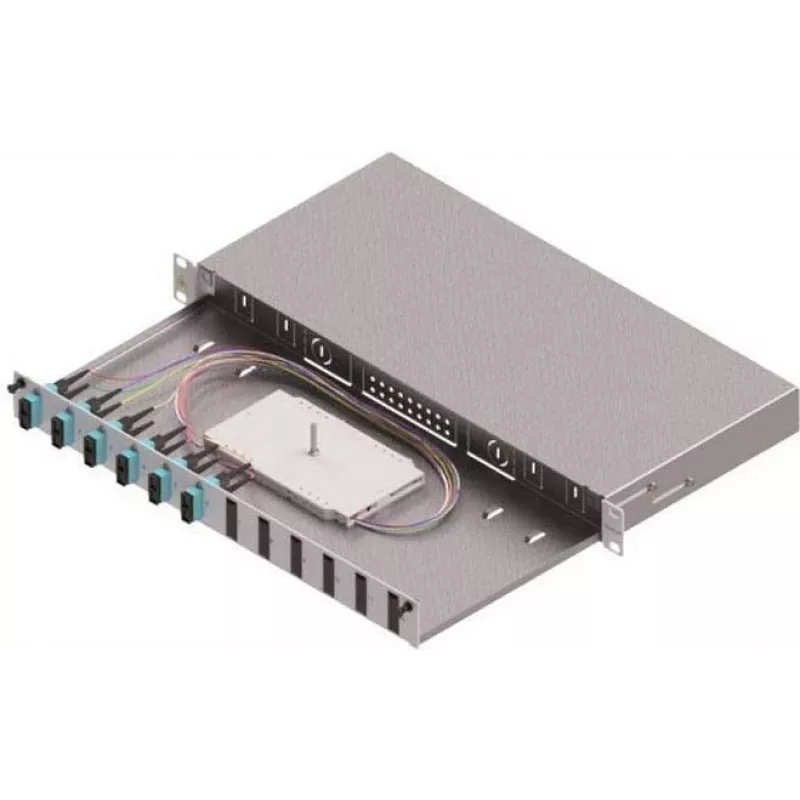

ZVK Easylan LWL -jatkoskotelo Basic 1HE 6x SC-Duplex Standard OM3

The ZVK Easylan LWL Splice Enclosure Basic 1HE is a compact and robust fiber optic splice box designed for indoor wall-mount applications. It comes pre-equipped with 6 SC-Duplex couplers and 12 OM3 multimode pigtails, providing a ready-to-use solution for splicing and terminating up to 12 fibers. The enclosure is made of light grey (RAL 7035) steel sheet and includes a splice cassette, labeling strip, and cable glands for easy installation.

Advantages

Pre-installed components save time and reduce installation errors. The compact basic design fits neatly in limited spaces while offering reliable protection for fiber splices. The steel sheet housing ensures durability and long-term performance.

Suitable for

• Fiber optic network termination points in buildings
• Data center and enterprise network splicing
• FTTH and LAN distribution points
• Indoor wall-mount installations requiring up to 12 fiber splices

Key specifications

• Product Type: Fiber Optic Splice Enclosure
• Connector Type: SC-Duplex
• Number of Ports: 6
• Fiber Capacity: 12 fibers (6x Duplex)
• Fiber Mode: Multimode
• Fiber Class: OM3
• Housing Material: Steel Sheet
• Color: Light Grey (RAL 7035)
• Mounting Type: Wall Mount
• Application Environment: Indoor
• Pre-installed Adapters: 6x SC-Duplex Couplers
• Pre-installed Pigtails: 12x OM3 Multimode Pigtails
• Splice Cassette Included: Yes (1x)
• Splice Capacity: Up to 12 splices
• Cable Entry: 2x M20 Cable Glands
• Design: Compact Basic
• Compatibility: Standard OM3 Fiber Optic Networks
• Included Accessories: Labeling Strip, Cable Glands

Recommendations

This splice enclosure is ideal for network installers and system integrators who need a pre-terminated, easy-to-deploy solution for OM3 multimode fiber networks. Its compact size and wall-mount design make it perfect for space-constrained indoor environments.
