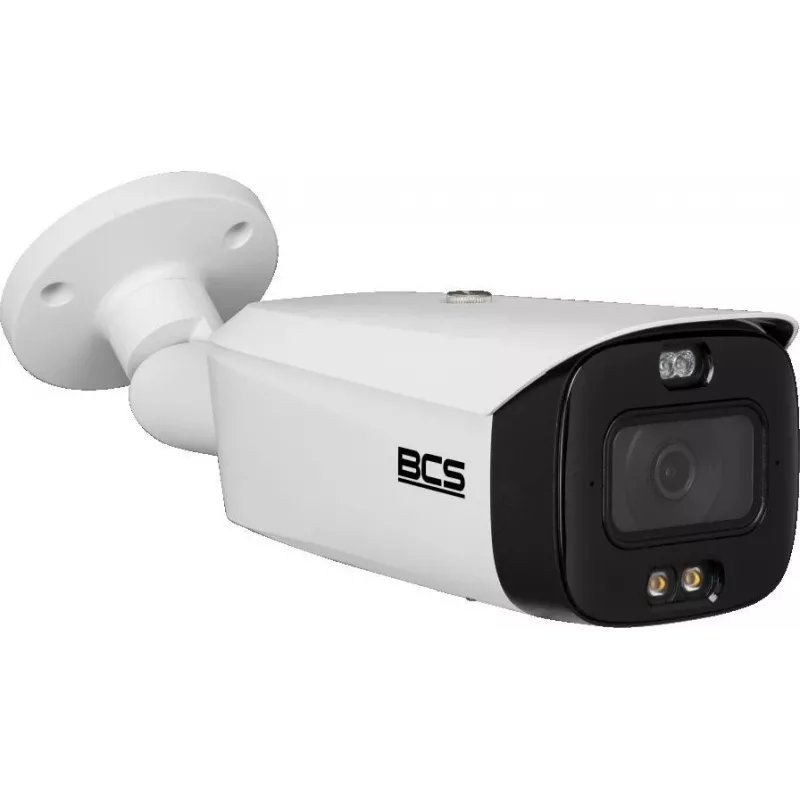

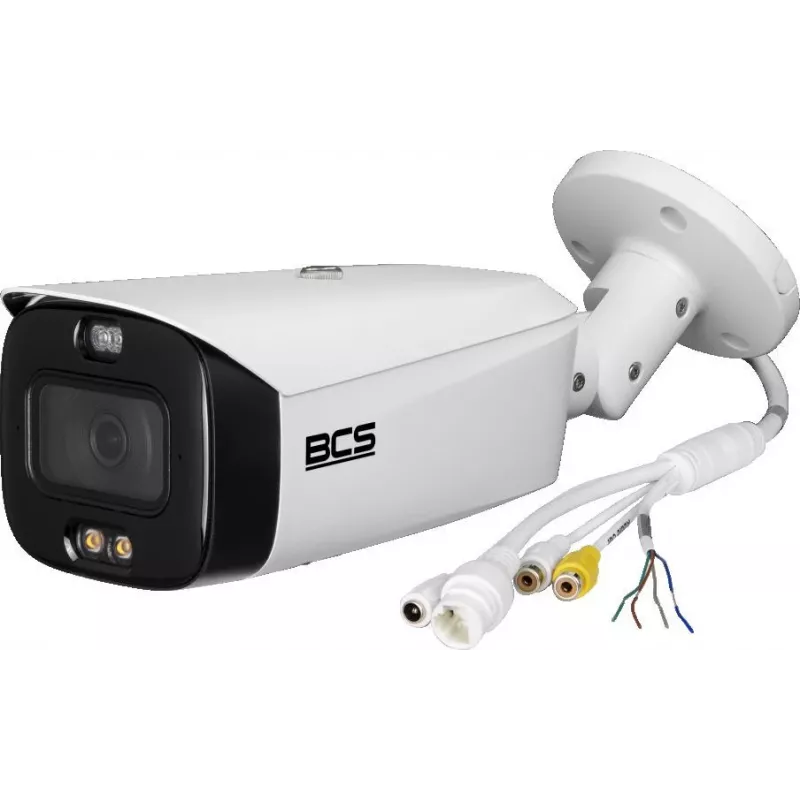

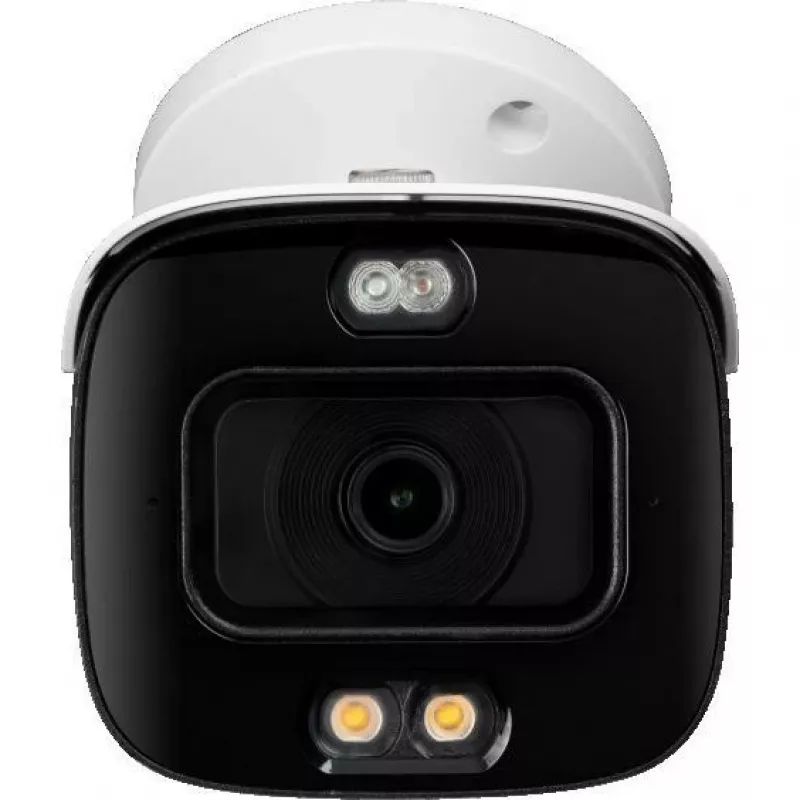

BCS-L-TIP55FCR3L3-AI1(3) 5MP IP-turret-kamera, 2,8mm, 30m IR, AI, PoE

The BCS-L-TIP55FCR3L3-AI1(3) is a high-performance 5MP IP turret camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 5MP resolution at 20fps. With a 2.8mm fixed lens providing a 103° horizontal field of view, this camera is ideal for wide-area monitoring. Equipped with advanced AI capabilities including Intelligent Video System (IVS), Face Detection, and Smart Motion Detection (SMD), it ensures intelligent and efficient security. The camera supports H.265+ compression for reduced bandwidth and storage, and offers 120dB True WDR for clear images in challenging lighting conditions. Built with a metal housing and IP67 rating, it is suitable for outdoor use. Power can be supplied via DC 12V or PoE (802.3af), making installation flexible.

Advantages

This camera combines high-resolution imaging with powerful AI analytics, reducing false alarms and enhancing security. The 30m IR range ensures 24/7 surveillance, while the robust metal construction and IP67 rating guarantee durability in harsh environments. PoE support simplifies cabling, and H.265+ compression saves bandwidth and storage costs.

Suitable for

• Perimeter monitoring of commercial and industrial sites
• Retail stores and warehouses
• Outdoor surveillance of parking lots and entrances
• Residential security for large properties

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 5MP (2592x1944) @ 20fps
• Lens: 2.8mm fixed, 103° H-FOV
• IR Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264
• WDR: 120dB True WDR
• AI Features: IVS, Face Detection, SMD
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V, PoE (802.3af), max 5.5W
• Ingress Protection: IP67
• Housing: Metal
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is rated for continuous recording. The camera is compatible with BCS NVRs and third-party systems supporting ONVIF.
