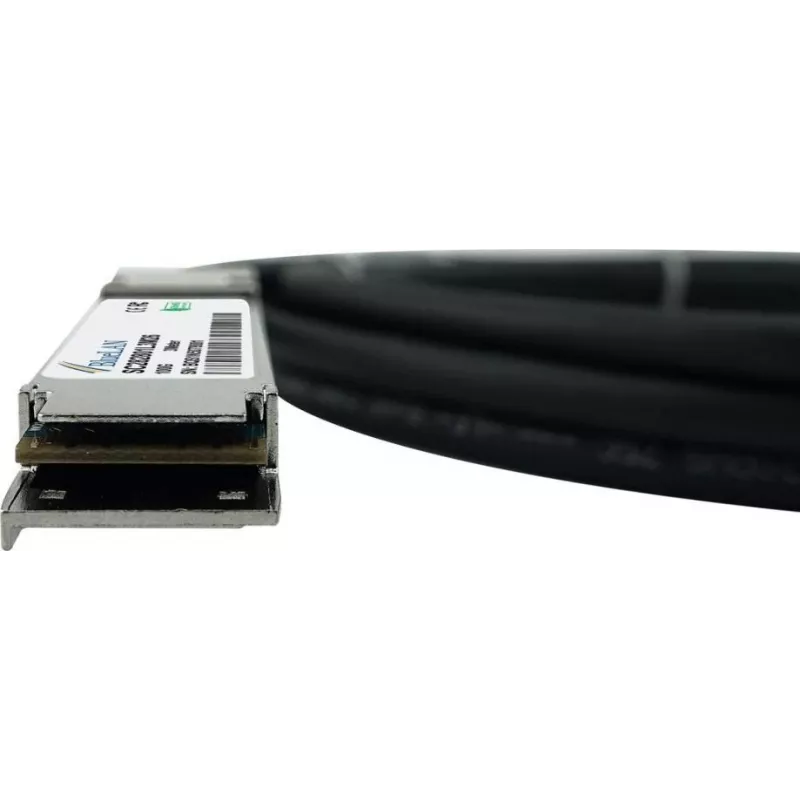

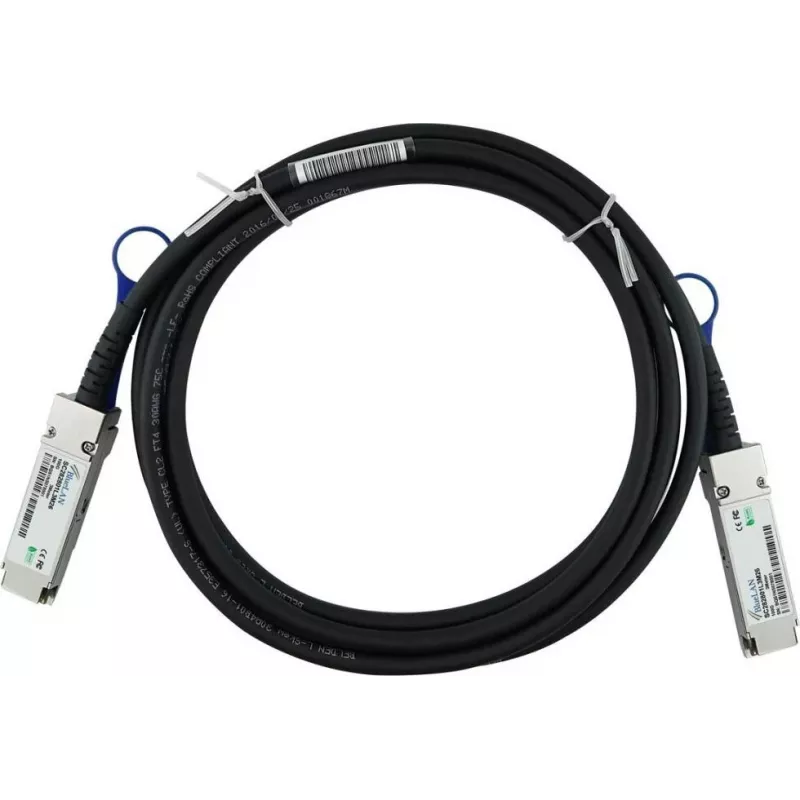

BLUELAN MCP1600-C001LZ-BL yhteensopiva NVIDIA QSFP28 Direct Attach -kaapeli, 100GBASE-CR4, 1 m, 30AWG

This QSFP28 Direct Attach Cable delivers 100 Gbps Ethernet connectivity over a 1-meter twinax copper link, compatible with NVIDIA MCP1600-C001LZ. It provides a reliable, low-latency solution for high-density data center and enterprise network environments.

Advantages

Passive twinax construction ensures minimal power consumption and low latency, while the 30 AWG wire gauge balances flexibility and signal integrity. Hot-pluggable QSFP28 connectors allow for easy installation and maintenance without network disruption.

Suitable for

• High-performance computing clusters
• Top-of-rack to server connections
• 100GBASE-CR4 Ethernet links
• NVIDIA-compatible network equipment

Key specifications

• Cable length: 1 meter
• Data rate: 100 Gbps
• Connector type: QSFP28 to QSFP28
• Wire gauge: 30 AWG
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C

Recommendations

For short-reach, high-bandwidth interconnects, this DAC offers a cost-effective alternative to optical transceivers, ensuring stable 100G performance with plug-and-play simplicity.
