BlueOptics yhteensopiva Alcatel-Nokia 3HE13591AA MPO/APC - MPO/APC OS2 Singlemode kuitu-trunkkokaapeli, 3 m

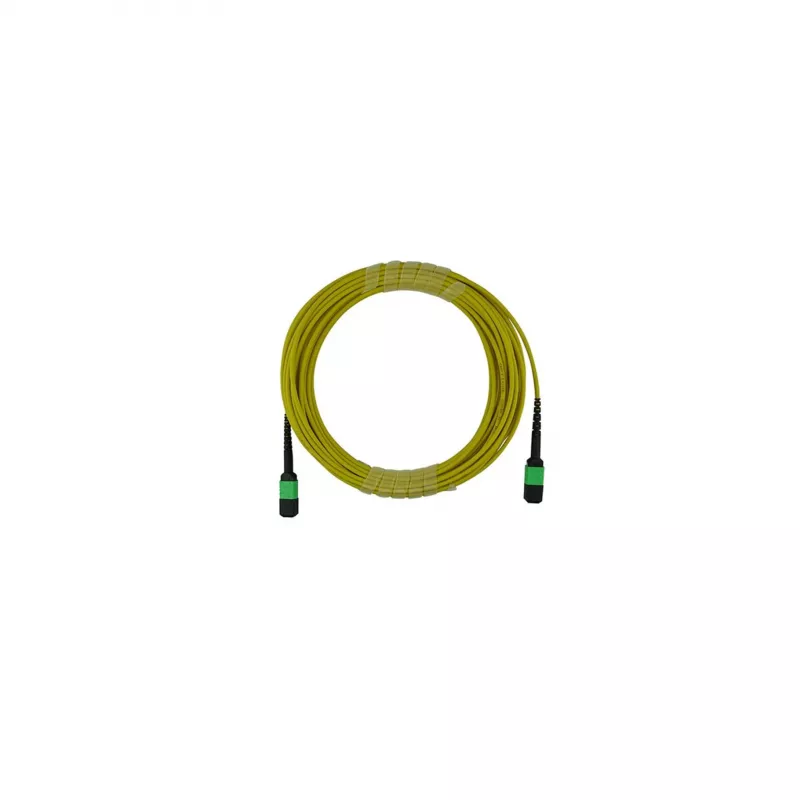

The BlueOptics 3HE13591AA-BO is a high-quality fibre optic trunk cable designed as a compatible replacement for the Alcatel-Nokia 3HE13591AA. This pre-terminated MPO/APC to MPO/APC assembly features 12 fibres in a single-mode OS2 configuration, ideal for high-density data centre and telecommunications applications. With a length of 3 metres and a yellow LSZH jacket, it ensures reliable performance and safety in plenum environments.

Advantages

This trunk cable offers low insertion loss (max 0.35 dB per connector) and high return loss (min 60 dB), ensuring excellent signal integrity. The MPO/APC connectors with angled polish reduce back reflection, making it suitable for high-speed networks. The LSZH jacket minimises toxic fumes in case of fire, enhancing safety in confined spaces.

Suitable for

• Data centre backbone cabling
• Telecommunications infrastructure
• Enterprise network patching
• High-speed fibre optic links (10G, 40G, 100G)

Key specifications

• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Fibre Count: 12 Fibres
• Fibre Type: OS2 Single-Mode
• Cable Length: 3 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss: ≤0.35 dB per connector
• Return Loss: ≥60 dB
• Polarity: Type B
• Operating Temperature: -20°C to 70°C
• Standards: RoHS, CE, ISO 9001

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. Avoid exceeding the minimum bend radius (10x cable diameter dynamic, 5x static). This cable is a direct replacement for Alcatel-Nokia 3HE13591AA and is fully tested to meet OEM specifications.
