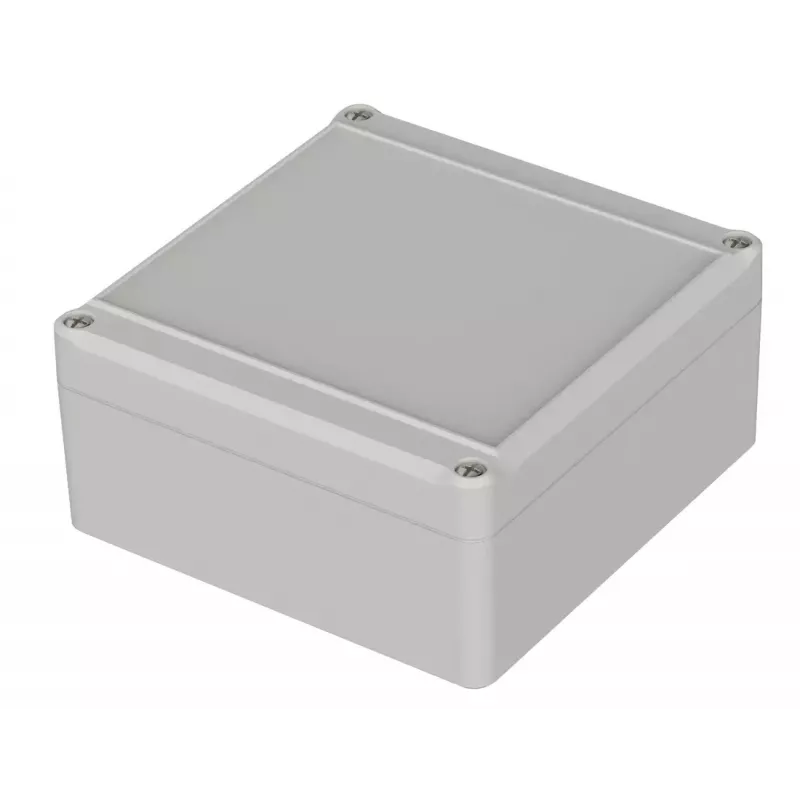

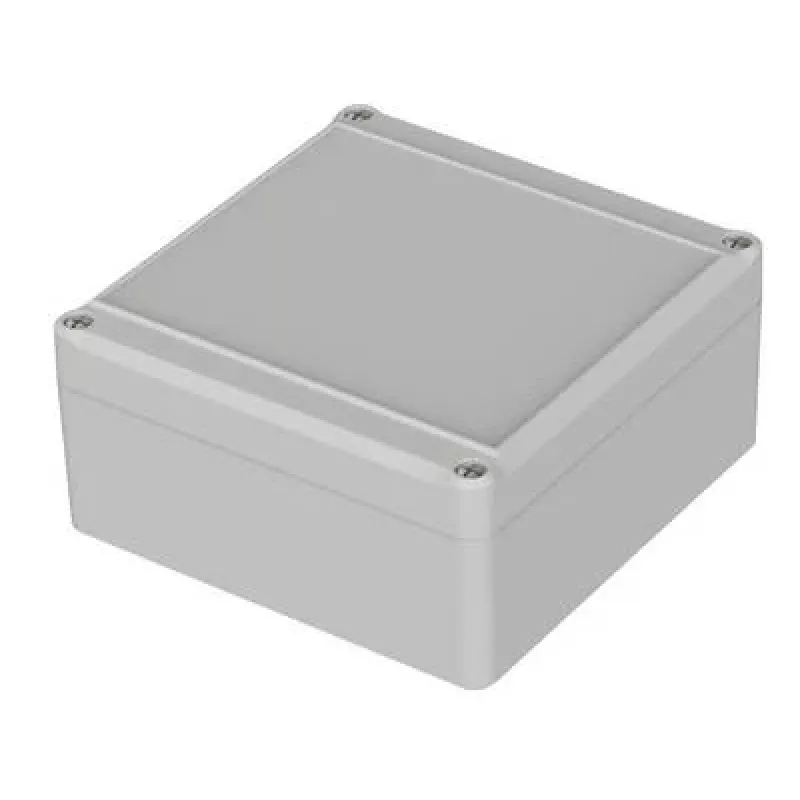

BOPLA yleiskotelo ABS vaaleanharmaa 120 x 120 x 57 mm ET 217-F 63217200.MT1

Universal enclosure from BOPLA's ET series, crafted from ABS in light grey (RAL 7035). Its robust design provides reliable protection for electronic components in demanding environments.

Advantages

The enclosure features integrated mounting bosses for PCBs or mounting plates, simplifying assembly. External screw channels allow secure wall mounting, and the lid is fastened with four captive stainless steel screws for easy access.

Suitable for

• Industrial control systems
• Junction boxes
• Electronic device housings

Key specifications

• Material: ABS
• Colour: Light grey
• External dimensions: 120 x 120 x 57 mm
• IP rating: IP65
• Impact protection: IK07
• Operating temperature: -40 °C to +70 °C
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws (captive)

Recommendations

Ideal for applications requiring a compact, durable enclosure with high ingress protection.
