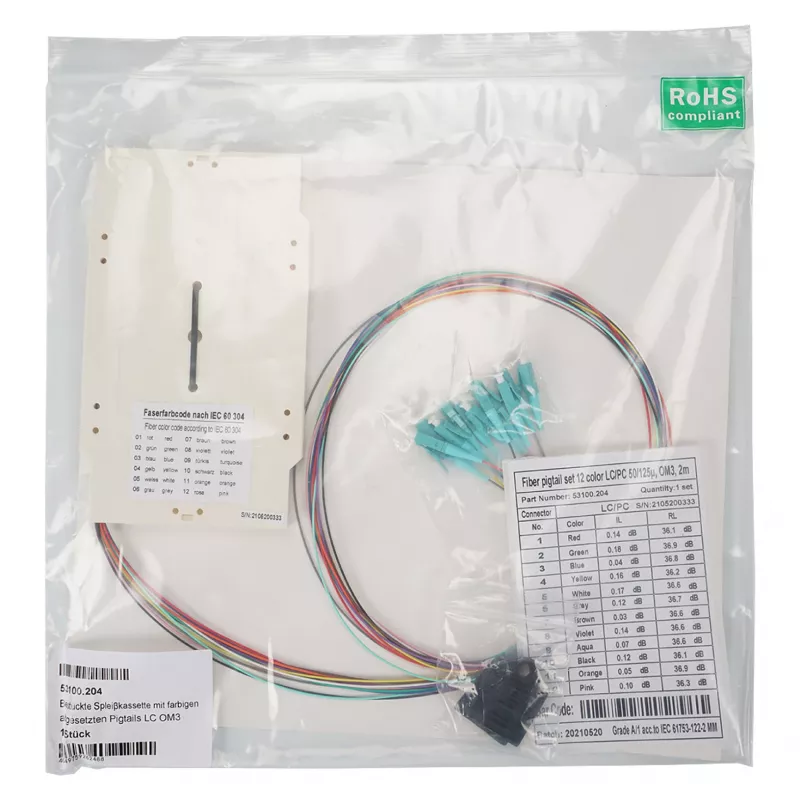

EFB-Elektronik valmis liitoskasetti värillä koodatuilla pigtaileilla LC OM3 (53100.204)

The EFB-Elektronik Pre-Assembled Splice Cassette with Color-Coded Pigtails LC OM3 is a high-quality fiber optic solution designed for efficient splicing and organization in distribution boxes, patch panels, and ODFs. This cassette comes pre-assembled with 12 LC simplex pigtails, each 2.0 meters long, featuring color coding according to DIN VDE 0888 for easy identification. The pigtails are made of 50/125 µm multimode fiber (OM3 grade) with LSZH jacket material, ensuring low smoke and zero halogen properties for safety. The cassette includes heat shrink splice protectors and offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), meeting IEC 61753-1 and TIA/EIA-568-C.3 standards.

Advantages

Pre-assembled design saves installation time and reduces errors. Color-coded pigtails simplify fiber identification and management. High-performance OM3 fiber supports 10 Gb/s data rates over longer distances. LSZH jacket enhances safety in confined spaces. Compact cassette fits standard splice trays and enclosures.

Suitable for

• Fiber optic distribution boxes
• Patch panels and ODFs
• Data center cabling
• Telecommunications networks
• LAN and SAN applications

Key specifications

• Product Type: Splice Cassette (Pre-assembled)
• Fiber Type: Multimode OM3
• Connector Type: LC Simplex
• Number of Pigtails: 12
• Pigtail Length: 2.0 m
• Fiber Core/Cladding: 50/125 µm
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61753-1, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with compatible LC adapters and splice enclosures. Ensure proper fiber cleaning before installation. Store in a clean, dry environment within specified temperature range.
