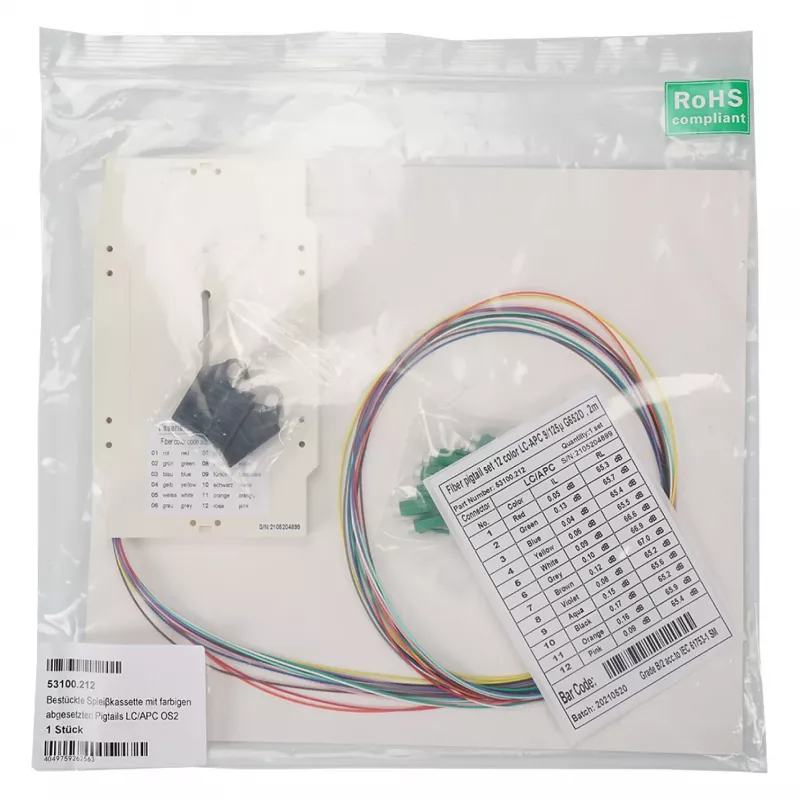

EFB valmiiksi koottu hitsauskasetti värillisillä pigtail-kaapeleilla LC/APC OS2 - 0,8 m

The EFB Pre-assembled Splice Cassette with coloured pigtails LC/APC OS2 is a high-quality solution for fibre optic splicing and termination. Designed for single-mode OS2 applications, this cassette comes pre-equipped with 12 colour-coded pigtails, each 0.8 m long, ensuring easy identification and organisation according to IEC 60304 / DIN VDE 0888 standards. The pigtails are pre-stripped (approx. 50 mm) and feature tight buffer construction for reliable performance.

Advantages

This splice cassette offers exceptional optical performance with typical insertion loss ≤ 0.2 dB and return loss ≥ 60 dB. The LC/APC connectors with 8° polish angle minimise back reflection, making it ideal for high-speed networks. The high-grade plastic housing ensures durability and compatibility with standard fibre optic splice trays. Pre-assembled design saves installation time and reduces the risk of errors.

Suitable for

• FTTx networks
• Data centres
• Telecommunications infrastructure
• Local Area Networks (LAN)

Key specifications

• Product Type: Pre-assembled Splice Cassette
• Fibre Type: OS2 Single-mode
• Connector Type: LC/APC
• Number of Fibres: 12
• Pigtail Length: 0.8 m
• Pigtail Buffer Type: Tight Buffer
• Colour Coding: Yes (IEC 60304 / DIN VDE 0888)
• Pre-stripped: approx. 50 mm
• Insertion Loss (typical): ≤ 0.2 dB
• Return Loss (typical): ≥ 60 dB
• Fibre Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Polish Angle: 8° (APC)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cassette Material: High-grade Plastic

Recommendations

For optimal performance, use with compatible splice trays and ensure proper cleaning of connectors before installation. Store in a clean, dry environment within specified temperature range.
