Lanview LVO2314705-FLEX InfiniBand/kuitu-kaapeli 0,5 m LC LC/LC akvaarinsininen

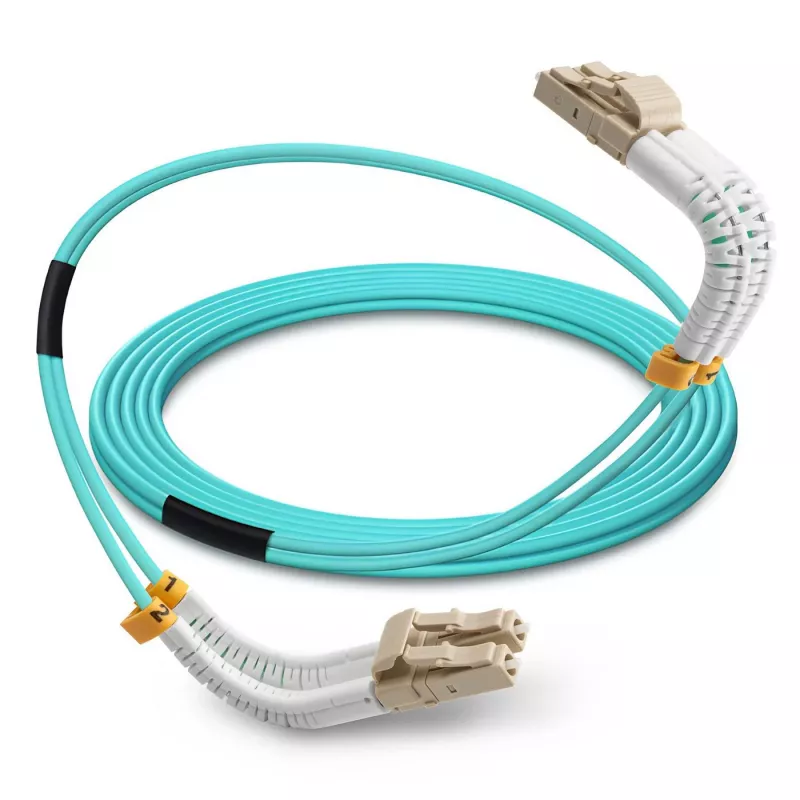

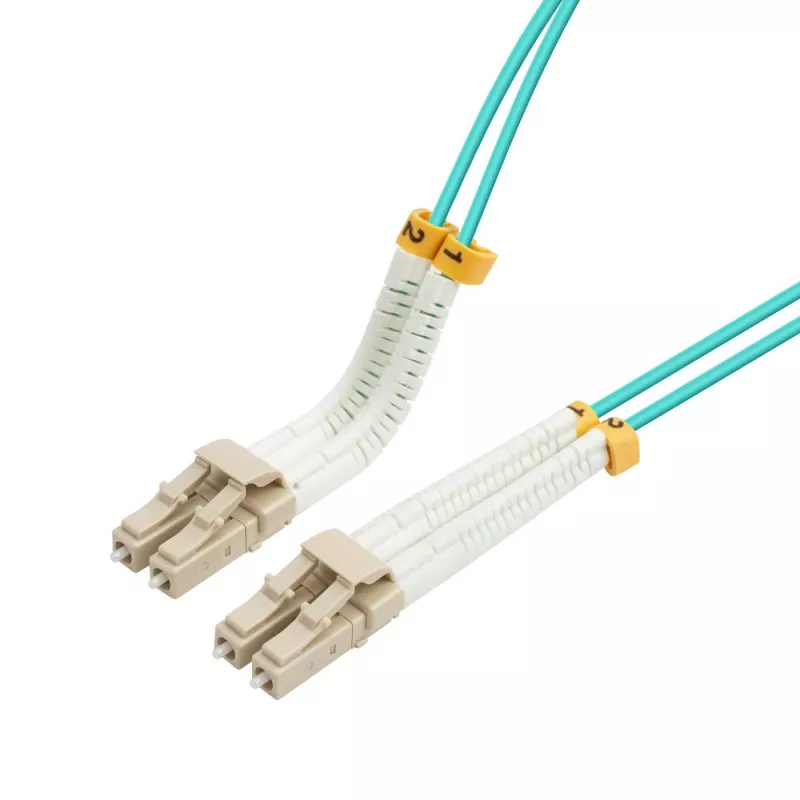

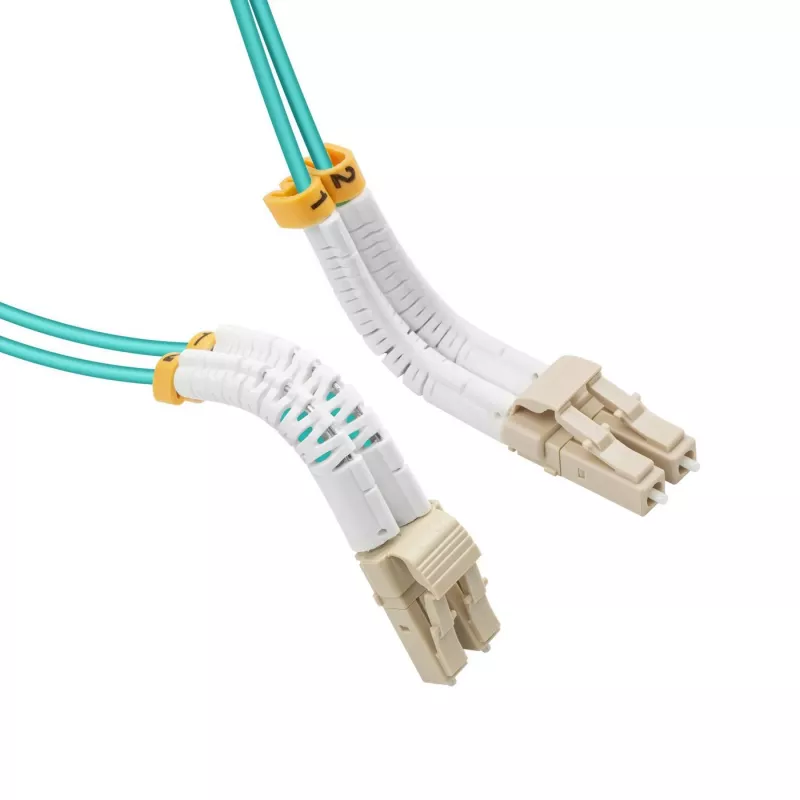

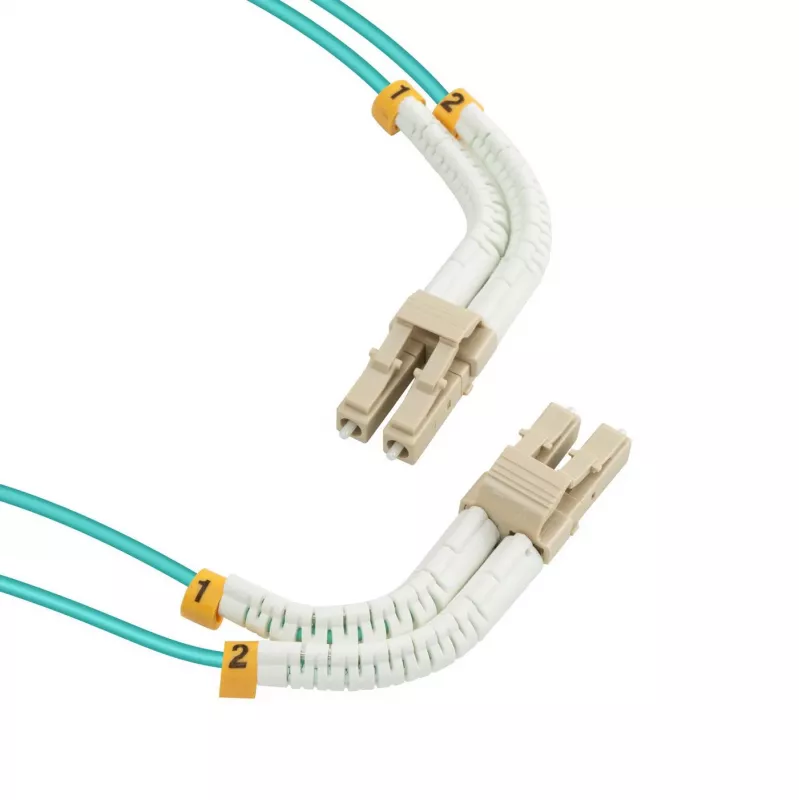

The Lanview LVO2314705-FLEX is a 0.5 m fibre optic cable with LC connectors on both ends and OM3 multimode fibre (50 µm core). The bendable boot with an internal stainless-steel wire lets you set and hold any angle from straight to 90° for reliable connector positioning in confined or high-density installations. The aqua-coloured jacket and LC/LC termination support full-duplex high-speed links in data centre and telecom environments.

Advantages

The bendable design provides flexible cable routing and stable connector orientation without special tools; the internal wire preserves the chosen angle while the boot can be manually repositioned or straightened for connector removal. OM3 multimode fibre ensures compatibility with common short-range high-speed networks, and the LC/LC termination offers compact, widely used connectors for patch panels and transceivers.

Suitable for

• Data centre patching and rack-to-rack connections
• High-density telecom and network cabinets
• Short-range multimode links (OM3) and equipment interconnects

Key specifications

• Model: Lanview LVO2314705-FLEX
• Length: 0.5 m
• Connector type: LC — LC (duplex)
• Fibre type: OM3 multimode, 50 µm core
• Boot: Bendable with internal stainless-steel wire, adjustable 0–90°
• Colour: Aqua
• Weight: 0.01 kg

How to use

Insert LC connectors into matching ports on patch panels, transceivers or network devices, ensuring proper alignment of the duplex connectors. Bend and position the boot by hand to the required angle to route the cable through tight spaces or to maintain connector clearance; the internal wire will hold the angle. When disconnecting, straighten the boot and remove the connector as usual.

Recommendations

Do not bend the fibre cable itself beyond manufacturer-recommended bend radii; use the boot to shape the connector orientation and avoid applying excessive force to the connectors or ferrules.
