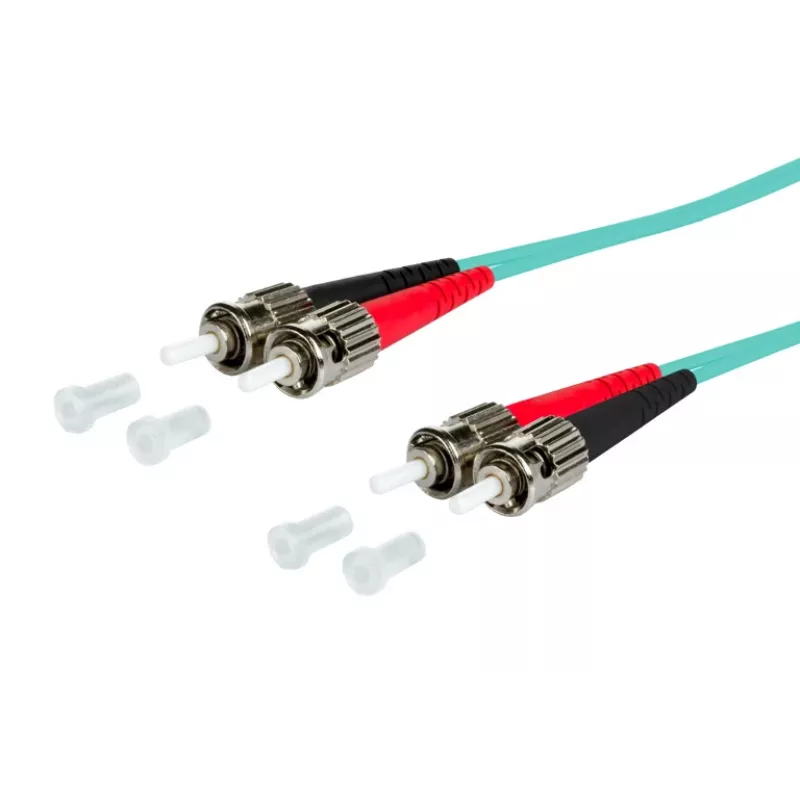

METZ BTR 151J1AOAO10E OpDAT OM3 Duplex ST-ST monimuotokuitu LWL -verkkokaapeli, 1m aqua, LSZH-vaipalla

For high-speed backbone links where signal integrity cannot be compromised, this METZ OpDAT OM3 duplex patch cable delivers laser-optimized multimode performance in a compact one-meter length. The aqua LSZH jacket meets strict fire-safety codes, while precision-polished ST connectors ensure low insertion loss across 10 Gigabit Ethernet runs.

Highlights

• OM3 laser-optimized multimode fiber supports 10GbE up to 300 meters at 850nm
• Duplex 50/125µm core/cladding with ST connectors on both ends
• Halogen-free I-V(ZN)H jacket emits low smoke and zero halogen in fire conditions
• Aqua color coding for instant OM3 identification in dense patching fields
• 1-meter length ideal for direct switch-to-patch-panel connections

In daily use

Each connector is factory terminated and tested to exceed TIA/EIA-568-C.3 insertion loss limits, so you can plug in and forget it. The zipcord construction separates easily for routing around corners, and the 30mm minimum bend radius protects the fiber from microbending losses even in tight cabinets.

Full specifications

• Fiber type: OM3 multimode, 50/125µm
• Connectors: 2x ST to 2x ST (duplex)
• Length: 1 meter
• Jacket: I-V(ZN)H halogen-free, flame retardant
• Color: Aqua
• Supported data rates: up to 10 Gbps
• Wavelengths: 850nm, 1300nm
• Minimum bend radius: 30mm
• Operating temperature: -20°C to +70°C
• Standards: IEC 60794-2, TIA/EIA-568-C.3, ISO/IEC 11801

Final note

When uptime depends on clean optical links, this METZ cable provides the reliability and compliance your network demands.
