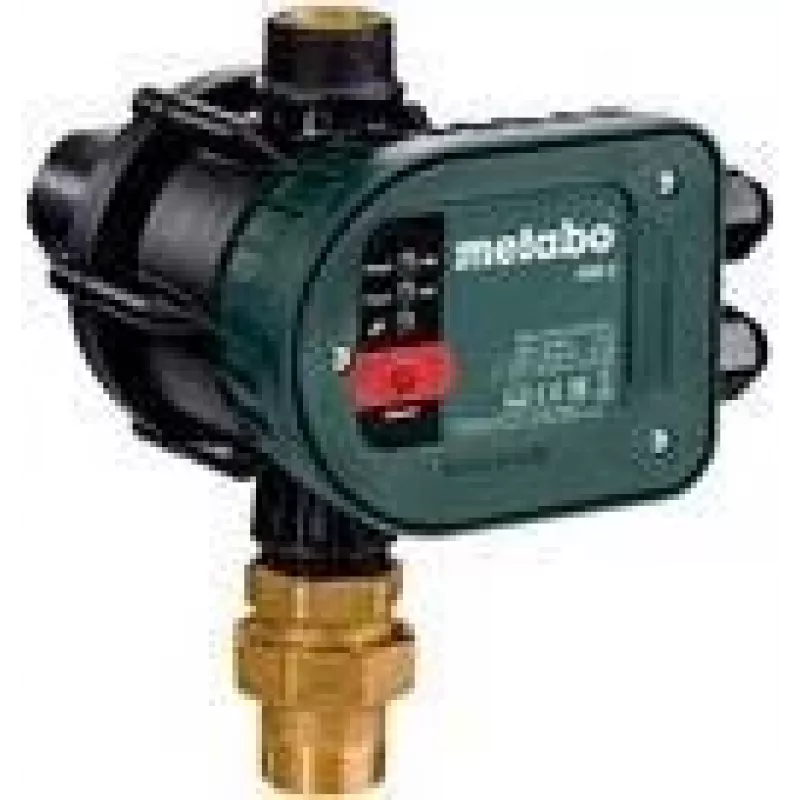

Pumpunohjaus Metabo 628799000

The Metabo 628799000 pump controller is designed for efficient water management and reliable automatic operation. It supports AC input voltages of 115–230 V, delivers up to 1500 W power and operates at 50–60 Hz. The unit has an IP65 rating for protection against dust and water and a maximum operating pressure of 10 bar, making it suitable for domestic and light commercial pump control tasks.

Advantages

The controller provides automatic start and stop of the pump based on pressure, includes dry-run protection that switches off the motor when no water is available, and features an LED display for quick status checking. Its wide AC voltage range and IP65 enclosure enable flexible installation in different environments.

Suitable for

• Garden irrigation systems
• Domestic water supply and booster applications
• Small-scale rainwater harvesting and reuse systems
• Pumping installations requiring automatic pressure control up to 10 bar

Key specifications

• Brand: Metabo
• Model / MPN: 628799000
• EAN: 4007430310200
• Power: 1500 W
• Input voltage: 115–230 V AC
• Frequency: 50–60 Hz
• Maximum pressure: 10 bar
• Ingress protection: IP65

How to use

Install the pump controller according to the pump manufacturer’s instructions and local electrical regulations. Connect the controller to a compatible pump and to the AC supply (115–230 V). Configure or verify pressure settings if required, then power the unit; the controller will start the pump when pressure drops and stop it once the maximum pressure is reached. Ensure wiring and grounding are correct before operation.

Recommendations

For reliable long-term operation, mount the controller in a dry, ventilated location protected from direct sunlight and freezing conditions. Periodically check the LED display and wiring for faults, and ensure the suction line is intact to prevent dry-run events.
