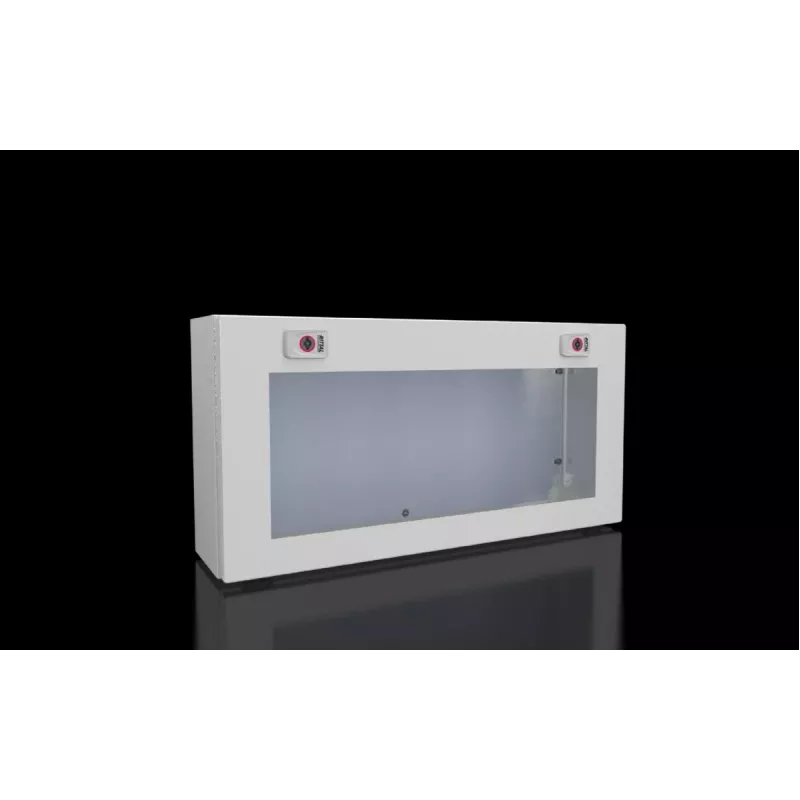

Rittal väyläkotelo LxKxS 600x300x155mm asennuslevyllä (1612100)

The Rittal Bus Enclosure BHT 600x300x155mm with Mounting Plate (1612100) stands out as a robust solution for housing busbar systems and industrial controls, offering a spacious 600 x 300 x 155 mm interior with an included mounting plate for easy component installation. Its sheet steel construction and light grey RAL 7035 finish provide durability and a professional appearance suitable for demanding environments.

Highlights

• Wall-mountable enclosure for busbar systems and industrial automation
• Includes zinc-plated mounting plate and gland plate
• Single door with cam lock and 3 mm double-bit insert
• Door opens 130° for convenient access
• Impact resistance rated IK08

In daily use

Designed for reliable operation in industrial settings, this enclosure protects electrical components from dust and water ingress. The textured powder-coated finish resists wear, while the cam lock secures the door. The included mounting plate simplifies installation of DIN rail or busbar components, making it a practical choice for control and distribution applications.

Full specifications

• Enclosure Type: Busbar Enclosure
• Material: Sheet Steel
• External Dimensions (H x W x D): 600 x 300 x 155 mm
• Protection Rating: IP 66
• Impact Resistance: IK08
• Color: RAL 7035 (Light Grey)
• Surface Treatment (Enclosure/Door): Dipcoat-primed, powder-coated (textured)
• Surface Treatment (Mounting Plate): Zinc-plated
• Mounting Plate Included: Yes
• Gland Plate Included: Yes
• Number of Doors: 1
• Lock Type: Cam lock with 3 mm double-bit insert
• Door Opening Angle: 130°
• Mounting Type: Wall-mountable
• Application: Industrial control, automation, busbar systems
• Certifications: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Final note

Rittal's BHT enclosure combines proven protection with practical features, ensuring long-term performance in industrial environments.
