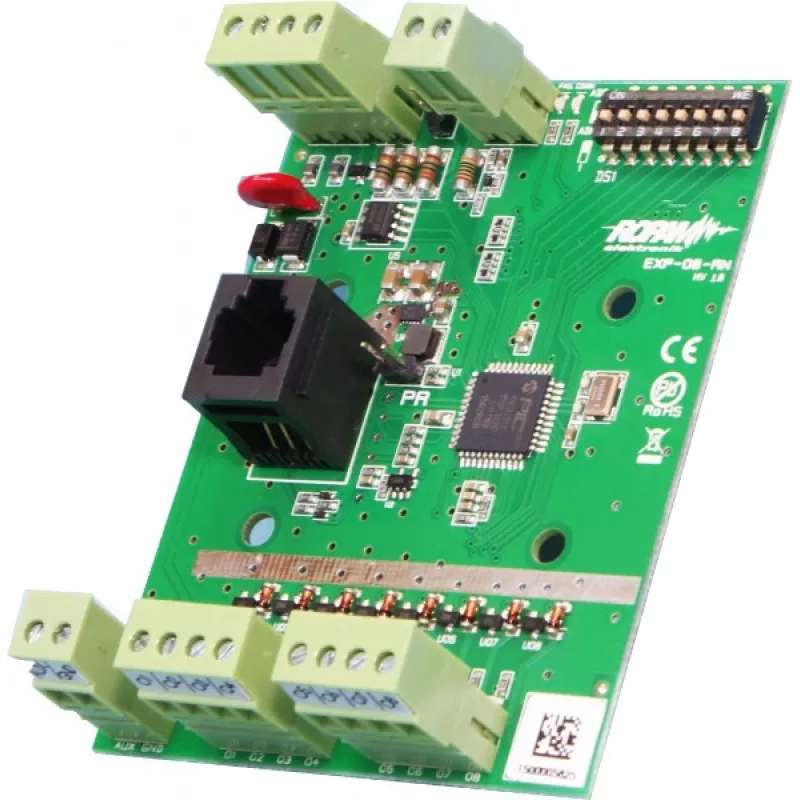

ROPAM EXP-O8T-RN lähtölaajennusmoduuli 8 lähtöä avokollektori

The ROPAM EXP-O8T-RN is a high-quality output expander module designed to extend the output capabilities of Ropam control panels. With 8 open collector outputs, each capable of handling up to 150 mA at 12V DC, this module provides reliable expansion for security and automation systems. It communicates via the Ropam BUS and is compatible with NeoGSM-IP, OptimaGSM, and BasicGSM 2 series panels.

Advantages

This module offers easy DIN rail or enclosure mounting, LED indicators for status and bus activity, and protection features including short-circuit and overcurrent protection (system dependent). Its compact design and low standby current consumption (15 mA) make it an efficient choice for expanding system outputs.

Suitable for

• Security system installers needing additional outputs
• Automation projects requiring open collector control
• Integration with Ropam control panels

Key specifications

• Product Type: Output Expander Module
• Number of Outputs: 8
• Output Type: Open Collector (OC)
• Max Output Current per Output: 150 mA
• Max Output Voltage: 12V DC
• Communication Interface: Ropam BUS
• Compatibility: Ropam NeoGSM-IP, OptimaGSM, BasicGSM 2 series
• Power Supply: 10-14V DC (from control panel bus)
• Current Consumption (standby): 15 mA
• Mounting Type: DIN Rail / Enclosure
• Operating Temperature: -10°C to +55°C
• Indicators: LED for status/bus activity
• Protection Features: Short-circuit, Overcurrent (system dependent)
• Housing Material: Plastic

Recommendations

For optimal performance, ensure compatibility with your Ropam control panel and follow installation guidelines. This module is ideal for expanding output capacity in security and automation systems.
