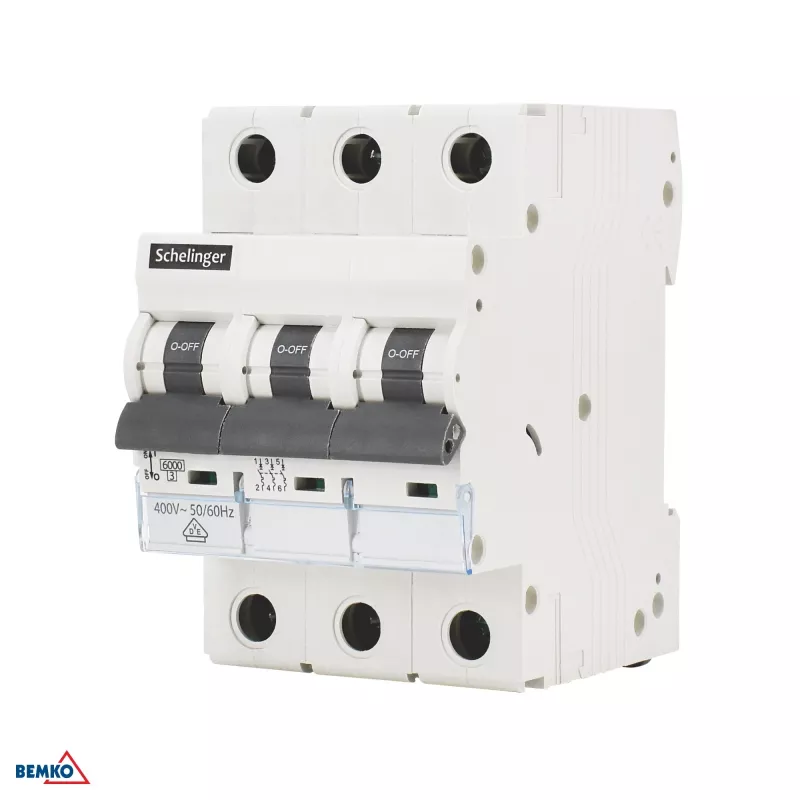

SCHELINGER A02-G8-3P-C32 johdonsuojakatkaisija 6kA 3P C 32A VDE

The SCHELINGER A02-G8-3P-C32 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, C-curve tripping characteristic, and a rated current of 32 A, this MCB ensures safe operation in residential, commercial, and industrial applications. Compliant with IEC/EN 60898-1 and VDE standards, it offers a short-circuit breaking capacity of 6 kA at 400 V AC.

Advantages

This MCB provides robust protection against overloads and short circuits, with a compact 3-module width for easy DIN rail mounting. The C-curve is ideal for circuits with moderate inrush currents, such as lighting and general-purpose loads. High electrical endurance (10,000 cycles) and mechanical endurance (20,000 cycles) ensure long service life. Screw terminals accommodate up to 25 mm² rigid or 16 mm² flexible conductors, simplifying installation.

Suitable for

• Residential distribution boards
• Commercial electrical panels
• Industrial control cabinets
• Lighting and socket outlet circuits
• General-purpose overcurrent protection

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole (3P)
• Rated Current (In): 32 A
• Tripping Curve: C-Curve
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (EN 60715)
• Standard Compliance: IEC/EN 60898-1, VDE
• Protection Degree: IP20
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Terminal Capacity: Up to 25 mm² (rigid), Up to 16 mm² (flexible)
• Operating Temperature Range: -25°C to +55°C
• Energy Limiting Class: 3
• Overvoltage Category: III
• Pollution Degree: 2
• Connection Type: Screw Terminals
• Indicator: ON/OFF Position Indicator
• Module Width: 3 Modules

Recommendations

For optimal performance, ensure the MCB is installed by a qualified electrician and used within its specified ratings. Regular testing of the ON/OFF indicator is recommended to verify proper operation.
