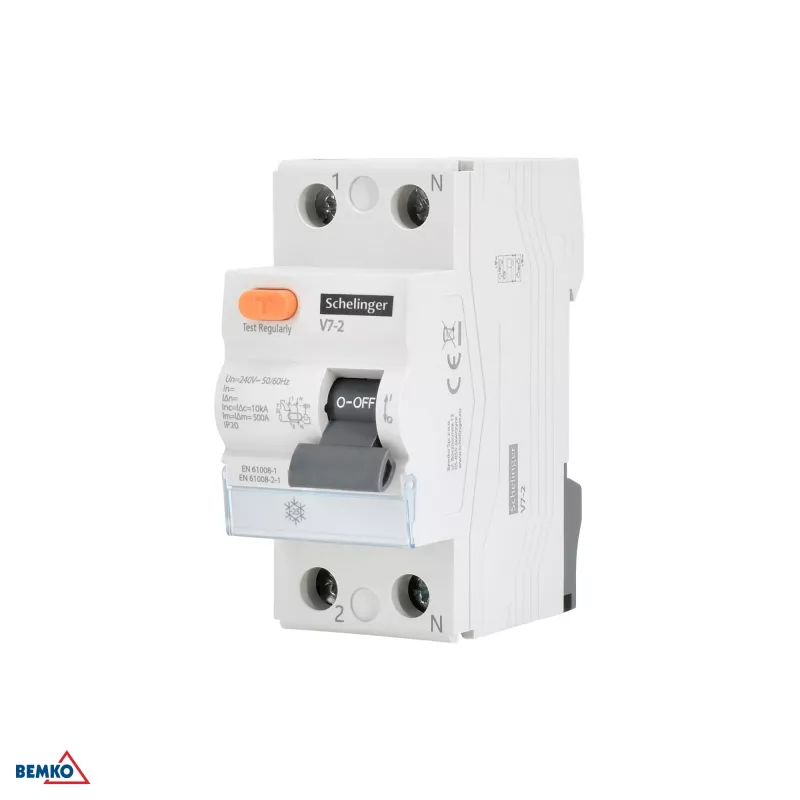

SCHELINGER A03-V7-2-25-030 vikavirtasuojakatkaisija AC 2P 25A 30mA

The SCHELINGER A03-V7-2-25-030 is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against sinusoidal alternating earth fault currents. With 2 poles, a rated current of 25 A, and a rated residual operating current of 30 mA, this device ensures safety in residential and commercial electrical installations. Compliant with IEC/EN 61008-1 standards, it offers robust performance and durability.

Advantages

This RCCB provides instantaneous tripping for enhanced safety, compact 2-module design for space-saving installation on DIN rail, and high breaking capacity of 6 kA. Its screw terminals accommodate conductors up to 25 mm², ensuring secure connections. The wide operating temperature range (-25°C to +40°C) makes it suitable for various environments.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control systems
• Protection against earth faults in AC circuits

Key specifications

• Brand: SCHELINGER
• Model: A03-V7-2-25-030
• MPN: A03-V7-2-25-030
• EAN: 5900280985026
• Type: RCCB (Residual Current Circuit Breaker)
• Number of Poles: 2P (2-Pole)
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Type of Residual Current: AC
• Rated Voltage (Un): 230 V AC
• Rated Frequency: 50/60 Hz
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail (35 mm)
• Module Width: 2 Modules (36 mm)
• Degree of Protection: IP20
• Operating Temperature Range: -25°C to +40°C
• Terminal Capacity: 1-25 mm²
• Electrical Endurance: 2000 cycles
• Mechanical Endurance: 10000 cycles
• Standards: IEC/EN 61008-1
• Tripping Characteristic: Instantaneous
• Connection Type: Screw Terminals

Recommendations

For optimal safety, ensure proper installation by a qualified electrician. This device is designed for AC residual current protection and should not be used for DC or pulsed currents. Regular testing per manufacturer guidelines is recommended.
