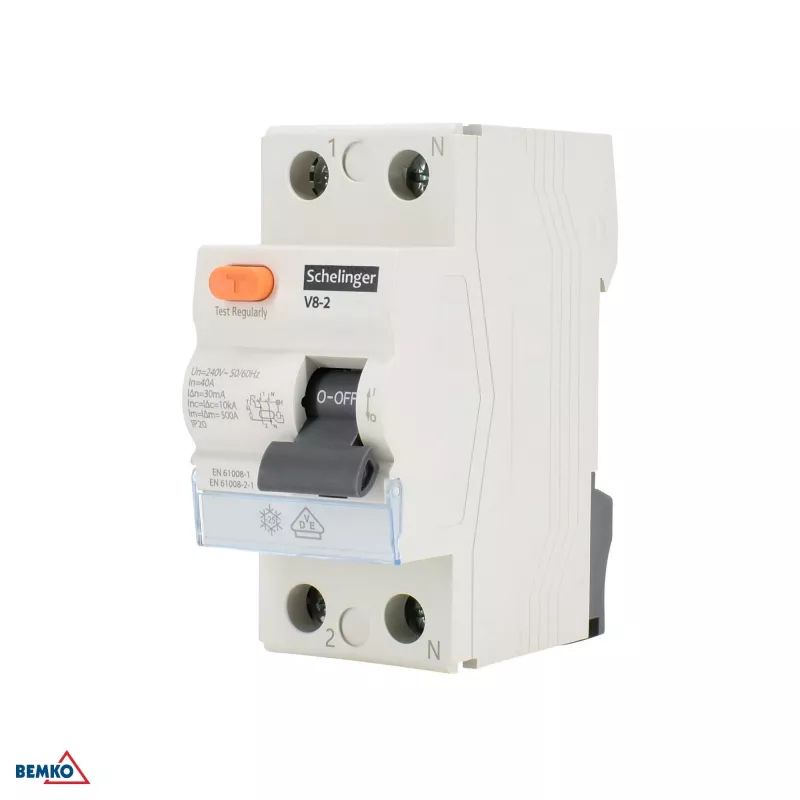

SCHELINGER vikavirtasuojakytkin tyyppi A 2P 25A 30mA 10kA VDE

The SCHELINGER A03-V8-2-25-030 is a high-quality residual current device (RCD) designed for reliable protection against electrical faults. This Type A RCD is suitable for sinusoidal alternating and pulsating direct currents, ensuring safety in residential and commercial installations. With a rated current of 25A and a residual operating current of 30mA, it provides effective protection against electric shock and fire hazards. Compliant with EN 61008-1 and VDE standards, this device offers robust performance and durability.

Advantages

This RCD features a compact 2-module design (approx. 36mm) for easy installation on DIN rails. It has a high short-circuit breaking capacity of 10kA and an impulse withstand voltage of 4kV, ensuring safety under fault conditions. The clear ON/OFF position and trip indicator provide visual status feedback. With electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles, it offers long-lasting reliability.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Protection of circuits with sinusoidal and pulsating DC residual currents

Key specifications

• RCD Type: Type A
• Number of Poles: 2P
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Voltage (Un): 230 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Degree of Protection (IP): IP20
• Operating Temperature Range: -25°C to +40°C
• Standards Compliance: EN 61008-1, VDE
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Rated Conditional Short-Circuit Current (Inc): 10 kA
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Terminal Capacity: 1-25 mm² (solid/stranded)
• Tripping Characteristic: Instantaneous
• Module Width: 2 modules (approx. 36 mm)
• Indication: ON/OFF position, Trip indicator

Recommendations

For optimal safety, ensure that the RCD is installed by a qualified electrician and tested regularly. This device is suitable for use in TN, TT, and IT systems. Always verify compatibility with your specific application.
