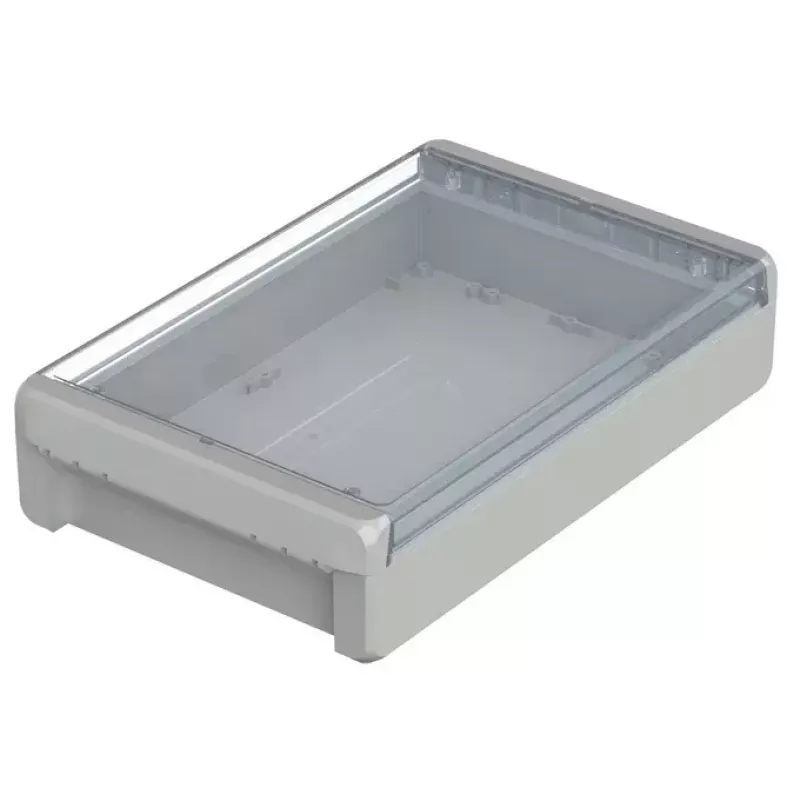

BOPLA CombiNorm-Connect seinäkotelo, polykarbonaatti, vaaleanharmaa (RAL 7035), 271 x 170 x 60 mm, IP65, IK08, UL 94 V-0 96026325

This BOPLA enclosure stands out for its rugged polycarbonate construction and versatile mounting options, making it a reliable choice for housing electronics in demanding environments. The light grey RAL 7035 finish offers a clean, professional appearance suitable for industrial and commercial installations.

Highlights

• Wall-mounted design with integrated mounting channels for easy installation
• Durable polycarbonate material with IK08 impact resistance
• IP65 protection against dust and water jets
• UL 94 V-0 flammability rating for enhanced safety
• Integrated mounting bosses for PCBs, DIN rails, and mounting plates

In daily use

The enclosure's solid grey lid and stainless steel lid screws ensure secure closure, while the polyurethane foam gasket maintains the seal. Its operating temperature range of -40°C to +80°C and UV resistance make it suitable for outdoor applications. The halogen-free and RoHS-compliant design aligns with modern environmental standards.

Full specifications

• External dimensions (L x W x H): 271 x 170 x 60 mm
• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature range: -40°C to +80°C
• Gasket material: Polyurethane (PU) foam
• Lid screws material: Stainless steel
• Mounting type: Wall mounting
• Lid type: Solid grey lid
• Internal mounting features: Integrated mounting bosses for PCBs, DIN rails, mounting plates
• Chemical resistance: Good against oils, greases, alcohols, weak acids and bases
• UV resistance: Good (suitable for outdoor use)
• Halogen-free: Yes
• RoHS compliance: Yes

Final note

The BOPLA CombiNorm-Connect enclosure combines durability, safety, and flexibility for a wide range of electrical and electronic applications.
