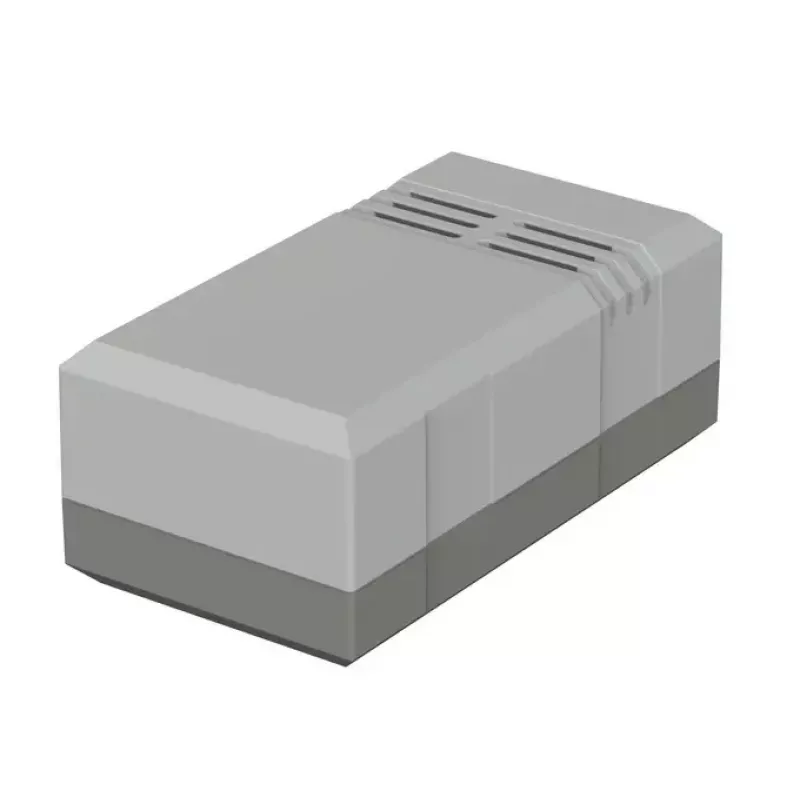

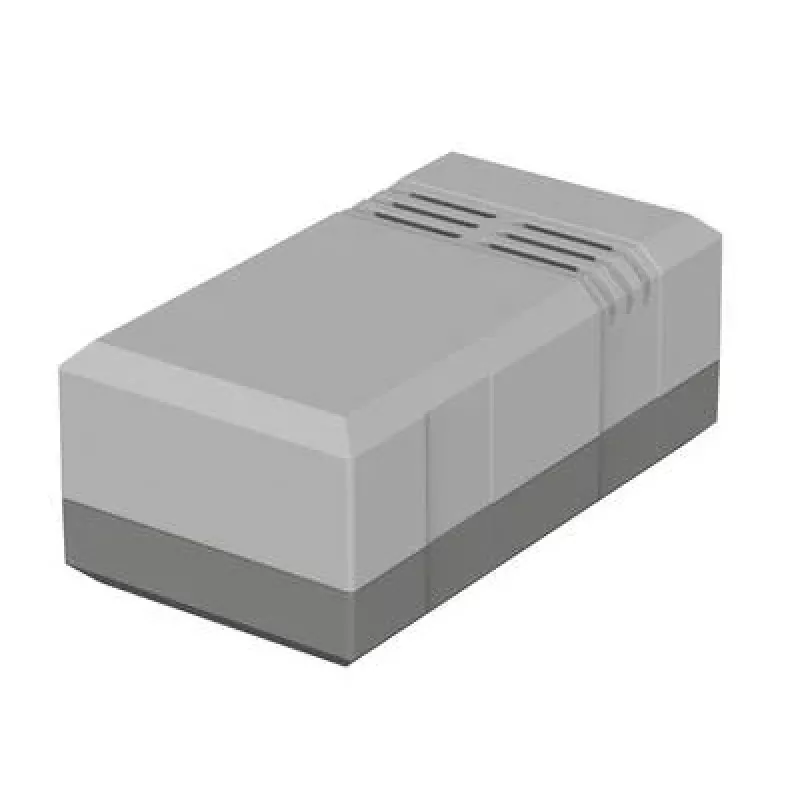

Bopla ELEGANT EG 1040 L pöytäkotelo, polystyreeni, vaaleanharmaa (RAL 7035), 100 x 54 x 40 mm 32104010

Electronic devices need protection from dust and accidental contact, especially in desktop or control-panel applications. The Bopla ELEGANT EG 1040 L provides a compact, light grey enclosure made of polystyrene (EPS), sized 100 x 54 x 40 mm, to house small electronic assemblies securely.

Who is it for

Engineers and hobbyists building general-purpose electronics, control units, or small interface modules that require a free-standing or desktop enclosure with a solid lid.

Main features

• Material: Polystyrene (EPS) with light grey colour (RAL 7035)
• External dimensions: 100 mm length, 54 mm width, 40 mm height
• Two-part construction: base and solid lid
• Series: ELEGANT
• Mounting: Desktop / free-standing

Specifications

• Enclosure type: Desktop enclosure
• Material: Polystyrene (EPS)
• Colour: Light grey (RAL 7035)
• External length: 100 mm
• External width: 54 mm
• External height: 40 mm
• Series: ELEGANT
• Protection class: IP40
• Lid type: Solid
• Number of components: 2 (base and lid)

Tips

When designing your PCB, ensure components do not exceed the internal height after accounting for the lid thickness. The IP40 rating protects against solid objects larger than 1 mm, but not against water, so avoid use in damp environments.
