ROPAM johdollinen lämpötila-anturi TSR-H-RN - NTC 10kΩ, IP65, 2,5m kaapeli, GSM/IP-hälytysmoduuleille

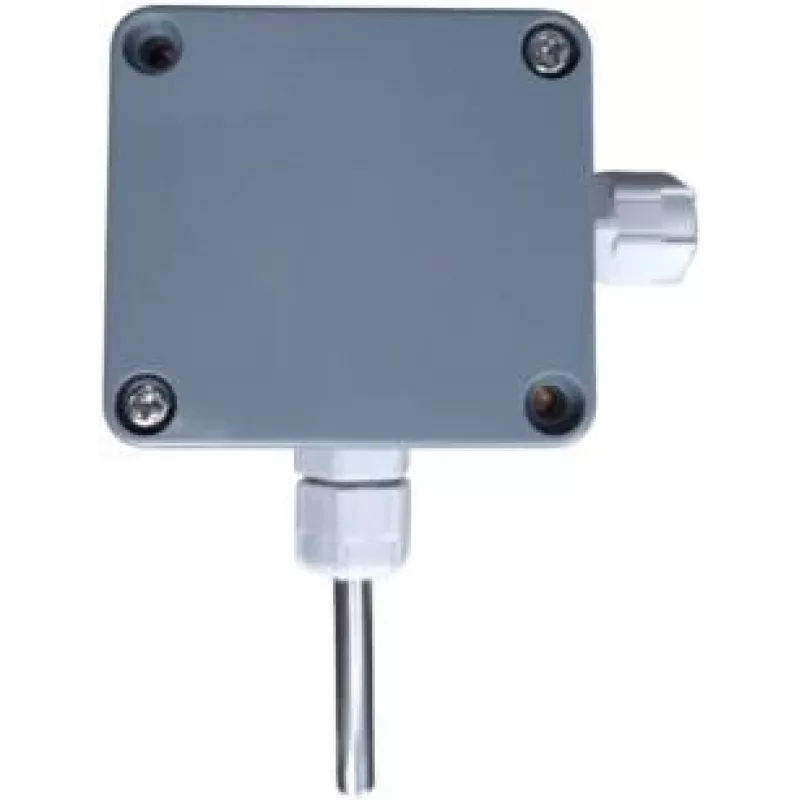

The ROPAM TSR-H-RN is a high-quality wired temperature sensor designed for precise temperature monitoring in both indoor and outdoor environments. Featuring an NTC 10kΩ thermistor, it offers accurate measurements from -30°C to +85°C with an accuracy of ±0.5°C in the critical range of 0°C to 50°C. The sensor is housed in a durable ABS plastic enclosure with IP65 ingress protection, making it suitable for harsh conditions. With a 2.5-meter cable and 2-wire connection, it integrates seamlessly with ROPAM GSM and IP alarm and automation modules such as NEO-GSM-IP, OPTIMA-GSM, MultiGSM, and BasicGSM 2. The passive design requires no external power supply, as it is powered directly by the connected module. Surface mount installation ensures easy setup on walls or other flat surfaces.

Advantages

Reliable and accurate temperature sensing for critical applications. The IP65 rating guarantees protection against dust and water jets, ensuring long-term performance outdoors. Compatibility with a wide range of ROPAM control modules allows for flexible system integration. The passive operation simplifies installation and reduces power consumption.

Suitable for

• Temperature monitoring in residential and commercial buildings
• Greenhouses, warehouses, and server rooms
• Outdoor temperature sensing for weather stations
• Integration with ROPAM alarm and automation systems

Key specifications

• Sensor Type: NTC 10kΩ
• Measurement Range: -30°C to +85°C
• Accuracy: ±0.5°C (0°C to 50°C)
• Cable Length: 2.5 m
• Ingress Protection: IP65
• Housing Material: ABS Plastic
• Colour: White
• Connection: 2-wire
• Power Supply: Passive (powered by module)
• Installation: Surface Mount

Recommendations

For optimal performance, ensure the sensor is installed in a location representative of the area to be monitored. Avoid direct exposure to sunlight or heat sources. Use with compatible ROPAM modules for seamless integration.
